Plastic Corrugated Tube Connector

This series of products includes connectors and fixing accessories for plastic/metal corrugated tubes, mainly consisting of: straight connectors, right-angle connectors, waterproof connectors, tee connectors, flange bases, mounting brackets (split/integral), end caps, cable connectors, flanges, and galvanized pipe adapters. They are widely used in electrical wiring, mechanical equipment, automation control systems, and other fields.

I. Product Classification
Category Product Name
Connection: Corrugated tube straight connector, Corrugated tube right-angle connector, Corrugated tube tee connector
Fixing & Support: Corrugated tube split bracket, Corrugated tube integral bracket, Corrugated tube flange base

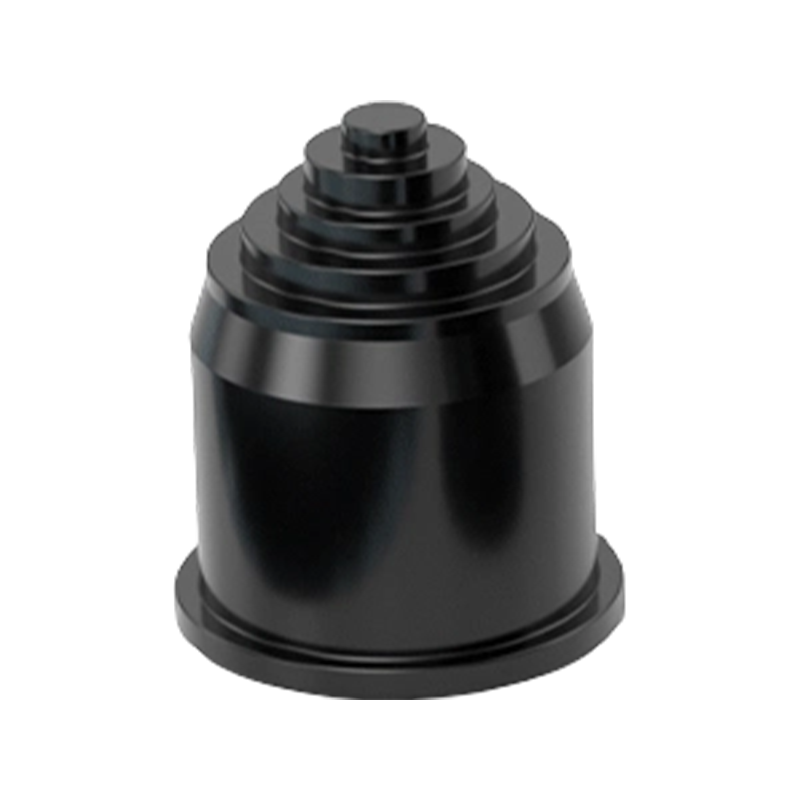

Sealing & Protection: Corrugated tube waterproof connector, Corrugated tube cable connector, Corrugated tube end cap
Adaptation Flange, Galvanized pipe adapter

II. Manufacturing Process
Plastic parts: Injection molded from flame-retardant PA66 nylon. Some products are equipped with rubber/silicone O-rings to achieve an IP68 waterproof rating.

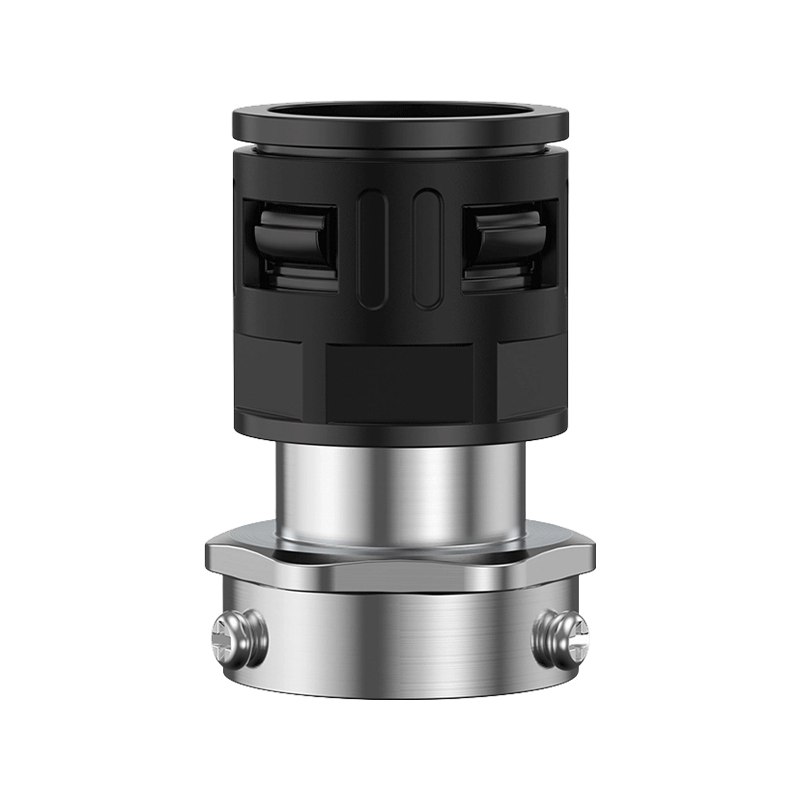

Metal parts (galvanized pipe adapter, etc.): Made of high-quality carbon steel, processed by stamping and turning, and galvanized for strong corrosion resistance.
Assembly process: Some products (e.g., split/integral brackets) are fixed with snap-fits or screws to ensure a tight fit with corrugated tubes. Assembly clearance < 0.2 mm; anti-loosening design.

III. Application Scenarios
Indoor and outdoor cable routing systems (cable trays, distribution cabinets, control boxes)
Internal wiring protection for automation equipment and robots
Interfaces and branches of embedded conduits in building electrical systems
Outdoor lighting, security monitoring, traffic signal systems
Cable management for photovoltaic power, wind energy equipment, EV charging piles
Oil, air, and electrical circuit protection in industrial machinery, injection molding machines, CNC machine tools

IV. Application Fields
Electrical engineering: Industrial power distribution, building electrical, structured cabling
Mechanical manufacturing: CNC machine tools, automated assembly lines, robotics
Renewable energy: Internal connections in solar power stations and wind turbines
Rail transit: Signal systems, cable troughs on rolling stock
Communication engineering: Base stations, data center cable protection
Municipal engineering: Street lighting, traffic signals, landscape lighting
The products support an IP68 waterproof rating, V0 flame retardancy, and an operating temperature from -40℃ to +105℃, meeting the connection and protection requirements of corrugated tubes in various harsh environments.
