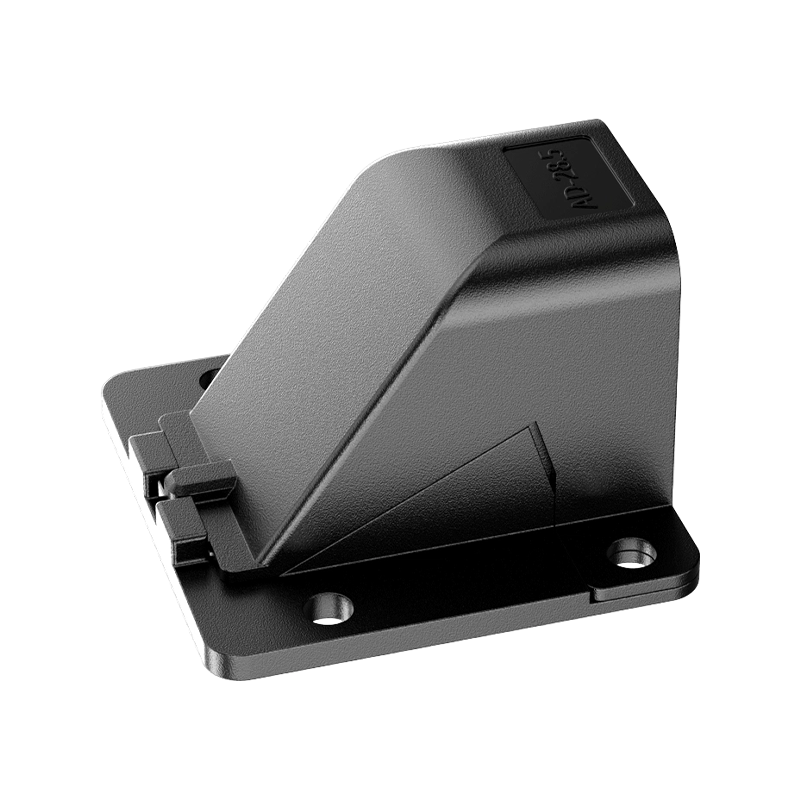

Corrugated Tube Flange Base

Manufacturing Process
Body Material: Injection molded from flame‑retardant PA66 nylon, impact‑resistant, anti‑aging, and UV‑resistant.
Flange Base Structure: Integrated injection‑molded flange with mounting holes on the base surface for bolting to equipment or panels.
Corrugated Tube Connection End: A port above or on the side of the base matches the corrugated tube. The inner wall has anti‑slip grooves or thread‑locking structures, equipped with a locking nut and cable claw. Assembly clearance ≤0.2mm ensures tight engagement with the corrugated tube outer wall.

Application Scenarios
Distribution cabinets and control boxes: as a starting fixing point for corrugated tubes before they enter the enclosure
Outdoor waterproof junction boxes and instrument enclosures: using a flange base to achieve a flat sealing fixation when corrugated tubes pass through
Cable tray systems: mounting a flange base on the side plate or bottom plate of a tray to connect a corrugated tube
Automation equipment cabinets: transitioning and sealing corrugated tubes from outside to inside the cabinet via a flange base
Building electrical embedded conduits: using a flange base as an end fixing piece where corrugated tubes exit walls or floors
Ships and offshore platforms: detachable flanged fixing points for corrugated tubes in highly corrosive environments

Application Fields
Electrical Engineering: Fixing bases for corrugated tubes in industrial distribution cabinets, outdoor control boxes, and cable tray systems
Mechanical Manufacturing: Fixing corrugated tube entries for equipment cabinets and operator stations
Renewable Energy: Flange bases for corrugated tubes in photovoltaic combiner boxes, energy storage battery cabinets, and inverters
Marine/Offshore: Flanged fixing bases requiring high water resistance and corrosion protection
Building Electrical: Terminal fixing flanges at the outlets of embedded conduits
Telecommunications: Corrugated tube bases at cable entries for base stations and data centers
