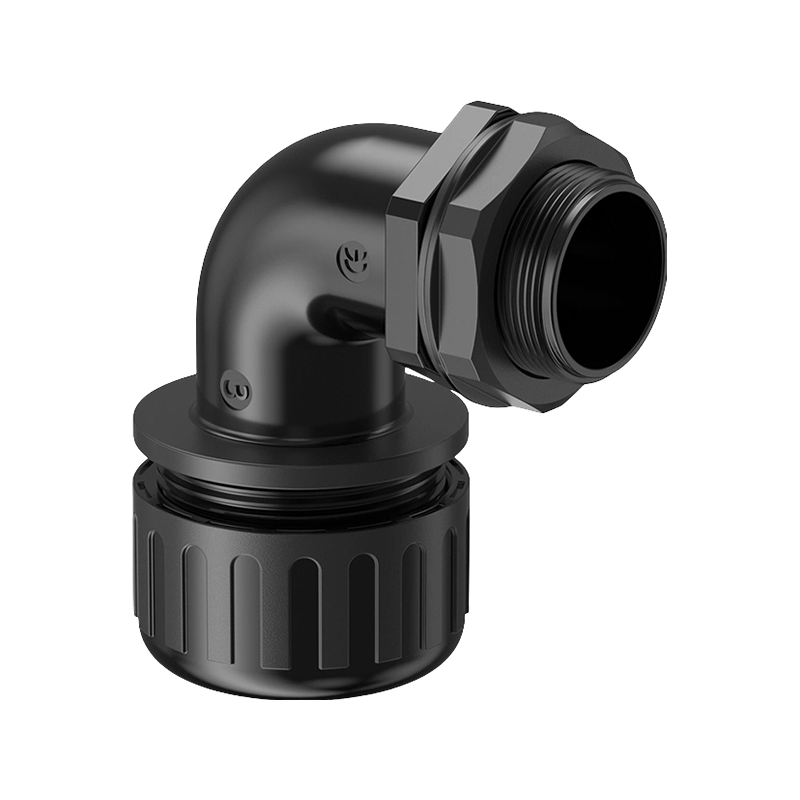

Corrugated tube waterproof elbow connector

Manufacturing Process
Body Material: Injection molded from flame-retardant PA66 nylon, meeting UV-resistant and anti-aging requirements.
Sealing System: Built-in silicone or rubber O-rings (seals at both ends and the rotating joint surface), compression molded with a precise compression ratio to achieve an IP68 protection rating (1 meter underwater for 30 minutes).
Elbow Structure: 90° one-piece design with smooth, burr-free inner wall and proper bending radius to avoid cable damage from over-bending.
Locking & Connection: Locking nuts and cable claws at both ends. Thread tightening compresses the seals, creating a tight fit between the connector, corrugated tube, and equipment panel. Assembly clearance < 0.2 mm.
Anti-Loosening Design: Anti-slip grooves at the connector tails engage with the corrugated tube outer wall, providing excellent pull-out resistance.

Application Scenarios
Cable entry/exit at corners of outdoor lighting fixtures (LED street lights, garden lights, landscape lights)
90° waterproof turns for cables inside security camera poles
Waterproof elbow cable entry for photovoltaic combiner boxes, inverters, and EV charging piles
Cable corner protection in tight spaces on ships, port equipment, and water pumps
Right-angle waterproof corrugated tube interfaces on outdoor distribution boxes and control cabinets
Direction changes of cable branches in underground pipe galleries and tunnels

Application Fields
Municipal Engineering: Pipe turns in road lighting, bridge illumination, and tunnel lighting systems
Renewable Energy: Right-angle outdoor cabling for solar power stations, wind turbines, and energy storage devices
Security & Traffic: Corner waterproofing for electronic police, traffic signals, and outdoor surveillance poles
Industrial Electrical: Outdoor control cabinets, wastewater treatment equipment, marine engineering
Building Electrical: Cable conduit turns in basements, rooftop equipment, and fountain systems
