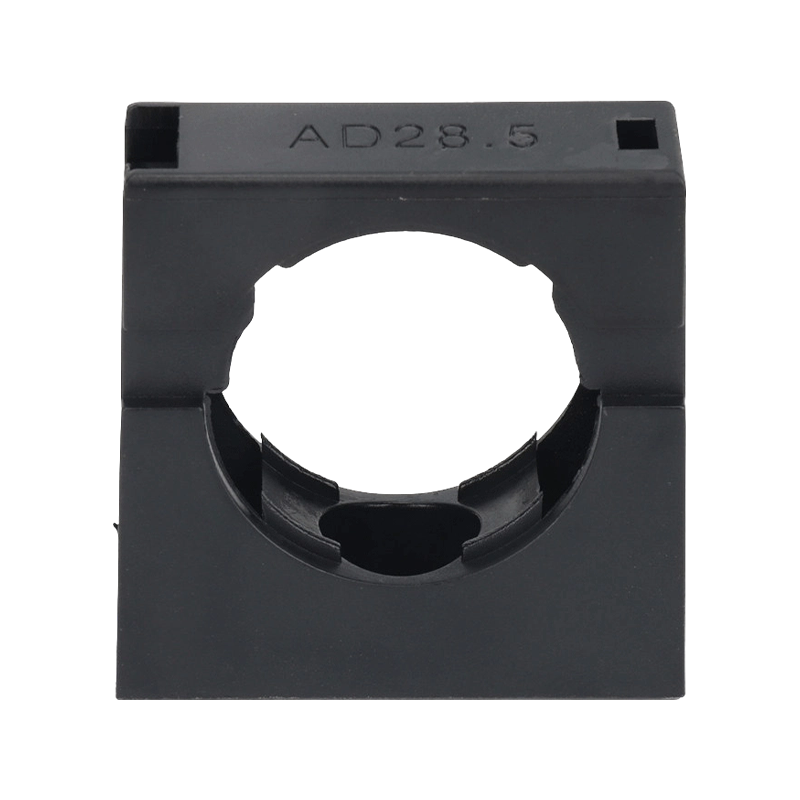

Corrugated Tube Split Bracket

Manufacturing Process
Body Material: Injection molded from flame‑retardant PA66 nylon, impact‑resistant, anti‑aging, and UV‑resistant.
Split Structure Design: Two symmetrical halves are locked together via snap‑fits, screws, or bolts. The inner wall features positioning grooves or anti‑slip textures matching the corrugated tube’s outer profile, ensuring a tight grip without damaging the tube wall.
Fixing Method: The bracket base has pre‑drilled mounting holes (typically one or two holes) for securing the bracket to equipment, walls, cable trays, or enclosures using screws, bolts, or cable ties.
Assembly Requirement: After closing, the inner diameter tightly fits the corrugated tube outer diameter with a clearance ≤0.2mm, preventing loosening and axial sliding.
Optional Features: Some models include a rubber pad or silicone liner for vibration damping or increased friction.

Application Scenarios
Intermediate fixing of corrugated tubes inside cable trays to prevent sagging due to gravity or vibration
Routing and fixing of corrugated tubes inside automation equipment – split design allows easy addition or replacement of cables
Organizing and bundling corrugated tubes inside cabinets and control boxes – installable without removing the tube
Vertical fixing of corrugated tubes inside outdoor lighting poles – split bracket avoids already pulled cables
Fixing corrugated tubes along support beams in photovoltaic arrays
Maintainable support of corrugated tube routing inside rail transit vehicles

Application Fields
Electrical Engineering: Fixing corrugated tubes in cable trays, distribution cabinets, and control boxes
Mechanical Manufacturing: Supporting corrugated tubes in CNC machine tools, automated assembly lines, and robotic cable harnesses
Renewable Energy: Fixing corrugated tubes inside solar power stations and wind turbines
Rail Transit: Supporting internal tubing in rolling stock and signaling equipment
Telecommunications: Fixing corrugated tubes in cable trays at base stations and data centers
Building Electrical: Supporting corrugated tubes after they exit embedded conduits from walls
