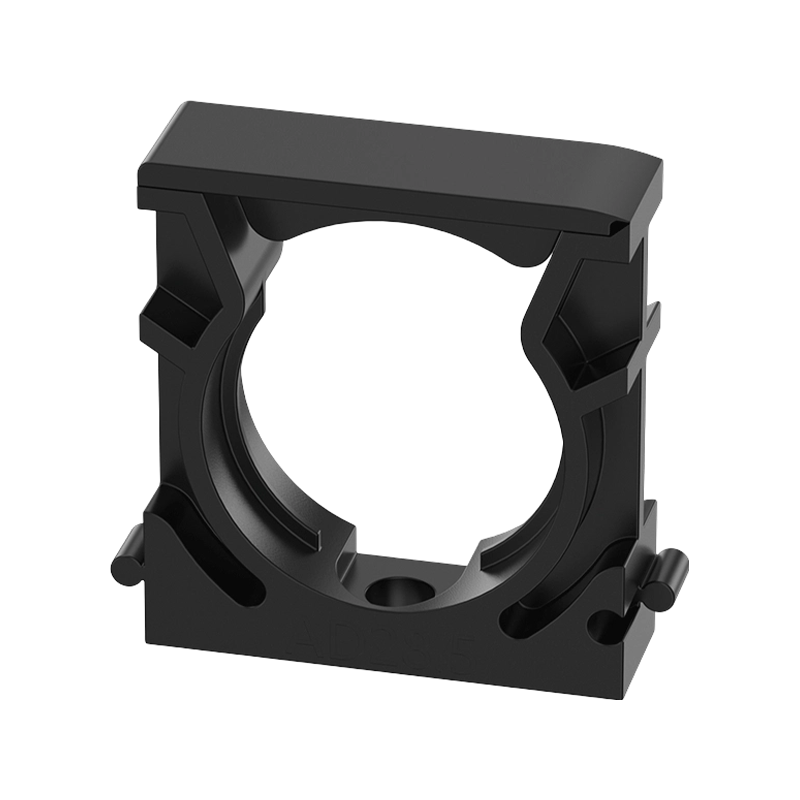

Corrugated Tube Integral Bracket

Manufacturing Process
Body Material: Injection molded from flame‑retardant PA66 nylon, impact‑resistant, anti‑aging, and UV‑resistant.
Integral Structure Design: One‑piece injection molding without seams. The inner wall features positioning grooves or semi‑circular slots that match the corrugated tube’s outer profile, ensuring a tight grip on the tube.
Fixing Method: The bracket base has pre‑drilled mounting holes (typically one or two holes) for securing the bracket to equipment, walls, cable trays, or enclosures using screws, bolts, or cable ties.
Installation Methods: Integral brackets typically use one of two approaches:
Slide‑on type: The bracket is slid onto the tube from the end, suitable for new wiring installations.
Snap‑in type: The tube is radially pressed into the slot using the bracket’s elastic deformation at the opening (on some designs); the bracket automatically snaps back to lock the tube in place.
Assembly Requirement: The bracket inner diameter tightly fits the corrugated tube outer diameter with a clearance ≤0.2mm to prevent axial sliding. Snap‑in types must provide sufficient locking force to avoid loosening under vibration.
Optional Features: Some models include a rubber pad or silicone liner for vibration damping or increased friction.

Application Scenarios
Long‑term fixing of corrugated tubes inside cable trays, especially in industrial environments with high vibration
Permanent routing and fixing of corrugated tubes inside automation equipment
Fixing corrugated tubes inside cabinets and control boxes where no further adjustment is needed after installation
Vertical fixing of corrugated tubes inside outdoor lighting poles (slide‑on installation)
Long‑term fixing of corrugated tubes along support beams in photovoltaic arrays
Reliable support of corrugated tube routing inside rail transit vehicles

Application Fields
Electrical Engineering: Permanent fixing of corrugated tubes in cable trays, distribution cabinets, and control boxes
Mechanical Manufacturing: Long‑term support for corrugated tubes in CNC machine tools, automated assembly lines, and robotic cable harnesses
Renewable Energy: Fixing corrugated tubes inside solar power stations and wind turbines
Rail Transit: Supporting internal tubing in rolling stock and signaling equipment
Telecommunications: Fixing corrugated tubes in cable trays at base stations and data centers
Building Electrical: Permanent support for corrugated tubes after they exit embedded conduits from walls
