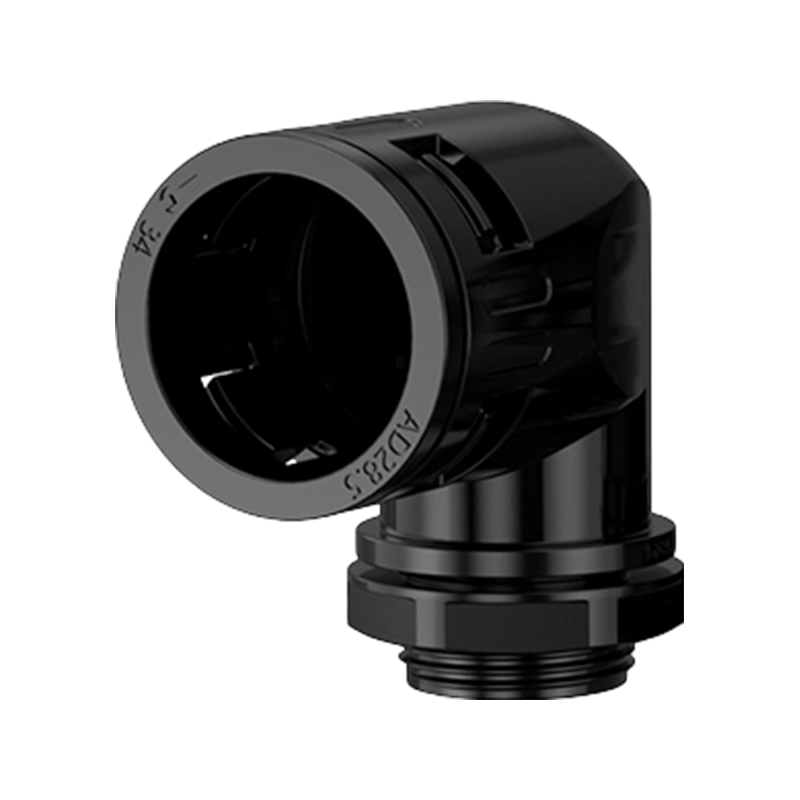

Corrugated Tube Elbow Connector

Manufacturing Process
Body Material: Injection-molded from flame-retardant PA66 nylon, meeting UL-94 V0 and offering high weather resistance.
Sealing: Built-in silicone or rubber O-ring, compression-molded to achieve IP68 dust/water ingress protection.
Connection Design: Push-in 90° elbow design with internal anti-loosening grooves or thread-locking structure, tightly engaging with the corrugated tube outer wall. Assembly clearance < 0.2 mm.
Surface Finish: Smooth, burr-free plastic surface. Optional locking nut for enhanced fixing strength.

Application Scenarios
90-degree turning connections of corrugated tubes between cable trays and distribution cabinets
Right-angle bend connections between control boxes, junction boxes, and corrugated tubes
Corner turning routing of cable protection conduits inside automation equipment
Cable conduit bend interfaces inside outdoor lighting poles
Cable entry/exit bend transition for photovoltaic inverters and EV charging piles
Right-angle bend links between embedded conduits and junction boxes in building electrical systems

Application Fields
Electrical Engineering: Industrial power distribution, building electrical conduit systems
Mechanical Manufacturing: Cable protection bending routing on CNC machine tools and automation equipment
Renewable Energy: Corrugated tube turning layout inside solar power stations and wind turbines
Rail Transit: Right-angle pipe connections for signal boxes and cable troughs on rolling stock
Telecommunications: Conduit bend systems at base stations and data centers
Municipal Facilities: Internal corner wiring in streetlights, traffic signals, and monitoring poles
