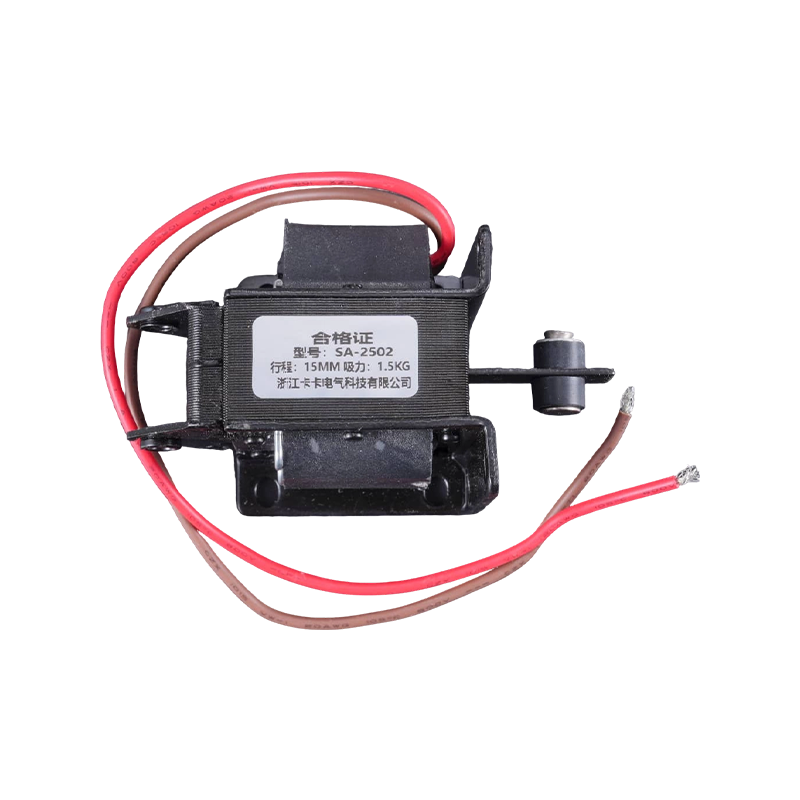

Traction Electromagnet

A traction electromagnet is an electromagnetic actuator that utilizes the principle of electromagnetic induction to convert electrical energy into linear reciprocating mechanical motion. When the coil is energized, it generates an electromagnetic field that drives the armature (moving core) to move toward the stationary core; through a connecting rod, this motion actuates an external mechanism to perform a pulling or pushing action. Upon power disconnection, a return spring or gravity causes the armature to return to its original position. These products are widely utilized for remote operational control in equipment such as machine tool fixtures, automated production lines, packaging machinery, and material handling systems.

The core structure of a traction electromagnet comprises a coil, a yoke (stationary core), an armature (moving core), a return spring, and an outer housing. When energized, the coil generates a magnetic field; the resulting magnetic flux lines traverse a magnetic circuit constructed from high-permeability materials, exerting an attractive force on the armature and driving it toward the stationary core. The initial force generated by the traction electromagnet is at its minimum the instant power is applied (at the point of maximum stroke); as the stroke distance decreases, the force progressively increases, reaching its maximum magnitude once the armature makes full contact with the stationary core (at zero stroke). Upon power disconnection, the return spring pushes the armature back to its original position, thereby completing a single operational cycle.
Core Materials: The coils are wound using pure copper enameled wire, offering excellent conductivity and a temperature resistance rating reaching Class F (155°C). The iron core is constructed from laminated high-permeability silicon steel sheets or pure electrical iron to minimize eddy current losses. The armature guide channel utilizes wear-resistant materials to ensure smooth, unhindered movement.
Insulation Treatment: The coils undergo a dual-process treatment involving vacuum impregnation followed by epoxy resin encapsulation; this creates a completely sealed unit that is both waterproof and moisture-proof.
Structural Design: Featuring an armored solenoid/shell-type structure, the design incorporates a segmented magnetic ring to effectively reduce eddy current losses and mitigate vibration noise in AC electromagnets.
Quality Inspection: Every production batch undergoes rigorous 100% testing, including suction force tests, insulation resistance tests, and temperature rise tests. Dielectric strength (voltage withstand) testing is also performed to ensure absolute electrical safety.
Customization Services: Parameters such as stroke length, suction force, operating voltage, duty cycle, mounting orientation (vertical/horizontal), and shaft end configuration can all be fully customized to meet specific requirements.

Core Advantages
1. Rapid Response, Reliable Operation: The traction electromagnet features a pull-in time of ≤0.2 seconds and a fast release response, effectively meeting the high-frequency start-stop demands of automated equipment. High-quality models can achieve an operating frequency of up to 1,500 cycles per hour.
2. Variable Suction Force (Stroke-Dependent): The suction force characteristics of the traction electromagnet are inversely proportional to the stroke distance—suction force is minimal at the initial, maximum-stroke position and reaches its maximum value once the armature has fully pulled in. This characteristic allows for low-load acceleration during startup and high-load holding once the armature is seated, making it particularly well-suited for applications requiring "fast startup and firm locking."
3. Sealed, Waterproof Coils; Strong Environmental Adaptability: Utilizing vacuum epoxy encapsulation technology for the coils, the unit achieves a fully sealed state with a high IP protection rating, offering excellent resistance to water, dust, and moisture. It is suitable for operation in harsh environments, including those that are humid or dusty.
4. Multiple Voltage Specifications; Global Compatibility: Operating voltages span a wide range from DC 24V to AC 380V. The units support both 50Hz and 60Hz power frequencies, ensuring compatibility with power supply standards across different regions of the world.
5. Long-Life Design; Low Maintenance Costs: High-quality models boast a mechanical lifespan exceeding 1 million operating cycles. By utilizing highly wear-resistant bearings and premium coil materials, the units deliver maintenance-free operation.
6. AC Simulation Technology and Overload Protection:
The AC-simulating traction electromagnet utilizes a DC electromagnet mechanism to simulate AC operational curves. This design combines the advantages of DC electromagnets—specifically stable operation and noise-free performance—while retaining the key strengths of AC electromagnets: high traction force and simple control. In the event that the armature becomes jammed, an intelligent module automatically switches the operating mode to prevent the coil from burning out.
