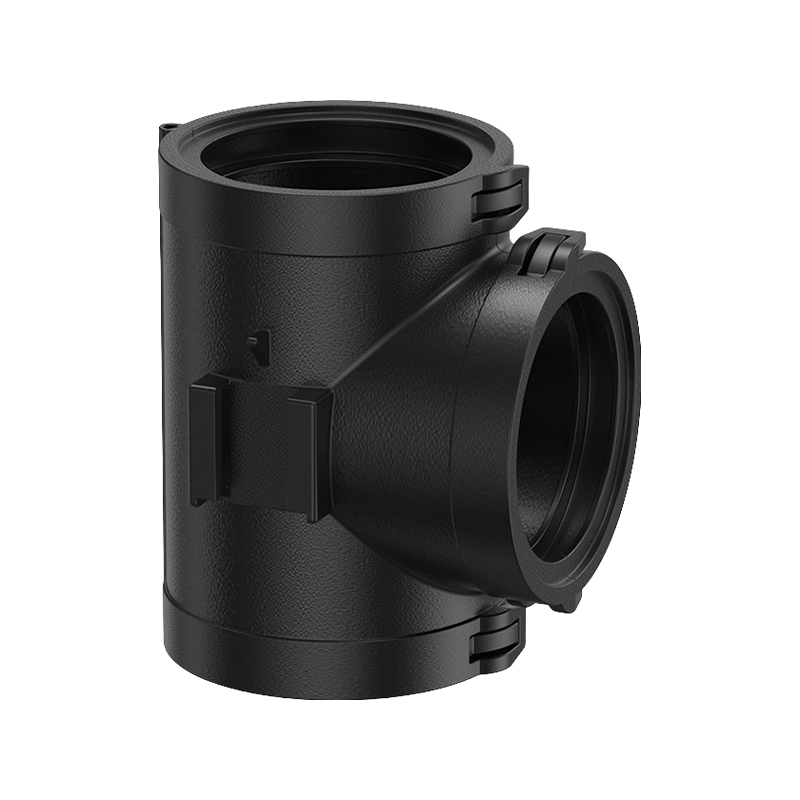

Corrugated Tube Tee Connector

Manufacturing Process
Body Material: Injection molded from flame‑retardant PA66 nylon, meeting UL‑94 V0 standard, impact‑resistant and anti‑aging.
Sealing System: Built‑in silicone or rubber O‑rings (or flat washers) at all three ports, compression-molded with a precise compression ratio to achieve an IP68 protection rating (1 meter underwater for 30 minutes).
Tee Structure: One‑piece T‑shaped design with anti‑slip grooves or thread‑locking structures on the inner walls of all three ports, tightly engaging the corrugated tube outer wall. Smooth inner surface, burr‑free to avoid cable damage.
Locking Method: Each port has an independent locking nut and cable claw. Thread tightening compresses the seals; assembly clearance ≤0.2 mm ensures anti‑loosening and pull‑out resistance.
Optional Features: Split‑body version (for easier assembly after cable pulling) or metal thread inserts for enhanced connection strength.

Application Scenarios
Branch points on a main cable tray route where multiple directions are required.
Corrugated tube branch connections at inlet/outlet of distribution cabinets and control boxes
T‑branch where one main line supplies multiple luminaires in an outdoor lighting system
Parallel or series branches for pneumatic/electrical circuits inside automation equipment
Branch routing of combiner lines in photovoltaic arrays
Branch lines for socket or switch boxes in building electrical embedded conduit systems

Application Fields
Electrical Engineering: Industrial power distribution, structured cabling, building electrical branch systems
Mechanical Manufacturing: Pipe/tube branching on CNC machine tools, robotics, automated assembly lines
Renewable Energy: DC combiner branching in solar power stations, internal wiring branches in wind turbines
Rail Transit: Corrugated tube interfaces at signal system branch boxes along the line
Telecommunications: Branch routing from main trunking in base stations and data centers
Municipal Engineering: T‑shaped connections from street lighting main lines to branch lines, cable splitting inside traffic signal poles
