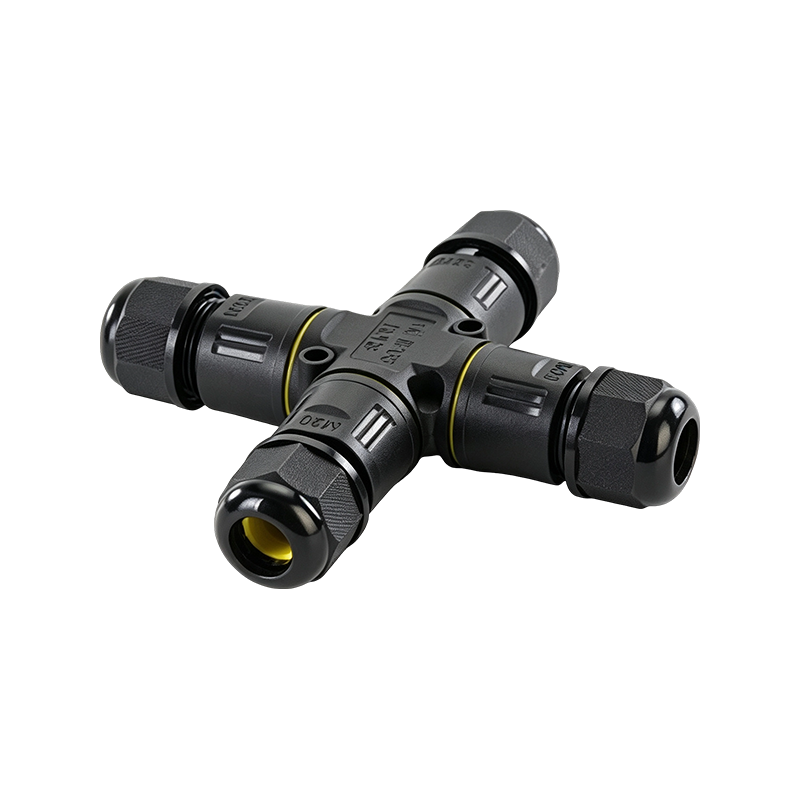

Screw-Clamp Waterproof Connector MH-SZXM20

The Screw-Clamp Waterproof Connector MH-SZXM20 is an electrical cable connector designed for secure cable connection through a screw-clamp structure. It provides reliable cable fixing, insulation protection, and waterproof performance for outdoor and industrial applications.

VIEW MORE Information VIEW MORE Specifications VIEW MORE Contact Us

Core Functions
Secure Screw-Clamp Wiring
The screw-clamp structure ensures stable cable fixation and simplifies installation and maintenance.
Environmental Protection
The waterproof sealing design helps prevent water, dust, and moisture from entering the connection area.
Stable Electrical Connection
The connector provides reliable conductivity and long-term connection performance.
Flexible Installation
Suitable for various cable connection requirements in outdoor and industrial environments.

Specific Applications
The MH-SZXM20 Screw-Clamp Waterproof Connector is used in outdoor lighting, photovoltaic systems, industrial automation equipment, control cabinets, and electrical distribution systems.

Item Specification
Protection Rating IP68
Temperature Resistance -40°C to +105°C
Storage Temperature Ambient
Body Material PA66 Nylon (Flame-retardant)
O-ring Material Silicone (Eco-friendly)
Applicable Cable Range 5–8 mm; 9–12 mm
Wiring Method Screw Terminal
Conductor Material Nickel-plated Brass (H59-1)
Applicable Wire Gauge 0.5–4 mm²
Withstand Voltage 2500V
Voltage/Current 25A / 400V
Flame Retardancy Rating UL-94V0
