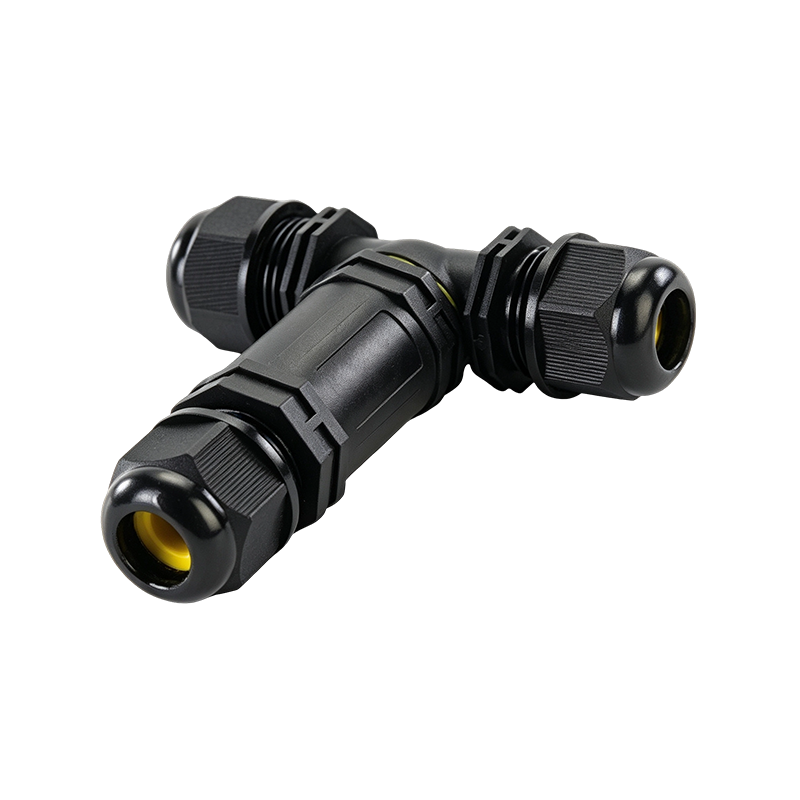

T-Type Mini Waterproof Connector MH-TXM25

The T-Type Mini Waterproof Connector MH-TXM25 is a compact T-shaped cable connector designed for outdoor electrical branch connections. It combines a small installation size with reliable waterproof protection, making it suitable for space-limited wiring applications.

VIEW MORE Information VIEW MORE Specifications VIEW MORE Contact Us

Core Functions
Compact Branch Connection
The T-type structure provides convenient cable distribution while reducing installation space requirements.
Waterproof and Dustproof Protection
The sealed design prevents moisture, dust, and external contaminants from affecting electrical performance.
Durable Insulation Housing
The insulated housing provides electrical protection and mechanical durability for outdoor use.
Easy Installation
The compact structure supports convenient assembly and maintenance.

Specific Applications
The MH-TXM25 T-Type Mini Waterproof Connector is widely used in outdoor lighting, photovoltaic equipment, smart devices, automation systems, and electrical control applications.

Item Specification
Protection Rating IP68
Temperature Resistance -40°C to +105°C
Storage Temperature Ambient
Body Material PA66 Nylon (Flame-retardant)
O-ring Material Silicone (Eco-friendly)
Applicable Cable Range 5–8 mm, 9–12 mm, 10–14 mm
Conductor Material Nickel-plated Brass (59-1)
Wiring Method Screw Terminal
Applicable Wire Gauge 0.5–2.5 mm²
Withstand Voltage 1500V
Voltage/Current 25A / 380V
Flame Retardancy Rating UL-94V0
