Outdoor 3-Way T-Type Waterproof Connector ZYT1

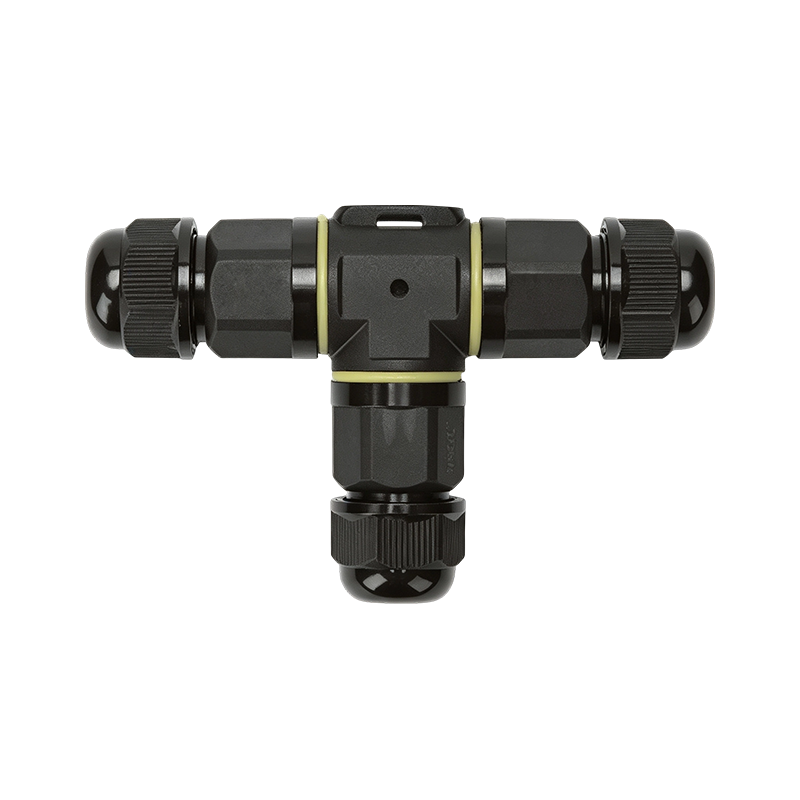

The Outdoor 3-Way T-Type Waterproof Connector ZYT1 is an IP68-rated cable branch connector designed for outdoor electrical wiring systems. Its T-shaped structure allows one main cable to connect with two branch cables, providing a flexible solution for power distribution and cable routing.
Manufactured with a flame-retardant PA66 housing, nickel-plated brass conductive components, and silicone sealing rings, it delivers reliable waterproof protection and stable electrical performance in outdoor environments.

VIEW MORE Contact Us VIEW MORE Download
Prev: 3-Core Waterproof Cable Connector ZYN13 Next: 3-Way T-Type IP68 Waterproof Connector ZYT2
VIEW MORE Information VIEW MORE Specifications VIEW MORE Contact Us

Core Functions
T-Type Cable Branch Connection
The T-shaped design enables convenient three-way cable connection, reducing complicated wiring structures and improving installation efficiency in outdoor projects.
IP68 Waterproof Protection
The sealed structure prevents water, dust, and moisture from entering the connector, making it suitable for outdoor installations exposed to rain and humidity.
Reliable Electrical Performance
Nickel-plated brass terminals provide good conductivity and corrosion resistance, ensuring stable power transmission during long-term operation.
Easy Installation
The screw locking structure allows fast assembly and secure cable fixation without complicated installation procedures.

Specific Applications
The ZYT1 Outdoor 3-Way T-Type Waterproof Connector is widely used in outdoor lighting systems, photovoltaic installations, garden lighting, monitoring equipment, charging facilities, and industrial electrical wiring.

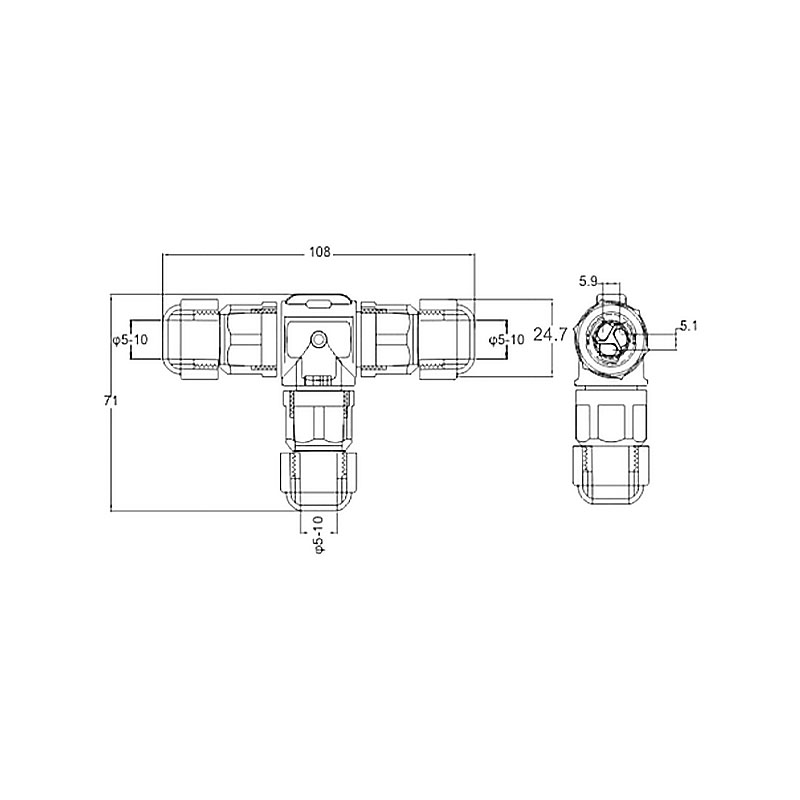

Dimension Drawing Item Specification
200064 Model ZYT1-2 (2-Pin) / ZYT1-3 (3-Pin)
Current Rating ≤ 24A
Voltage Rating 450V
IP Grade IP68
Working Temperature -40℃ ~ +95℃
Outer Cable Diameter 5-10mm (PG13)
Wire Section 0.5mm² - 2.5mm²
Housing Material PA66
Contact Material Nickel-plated Brass
