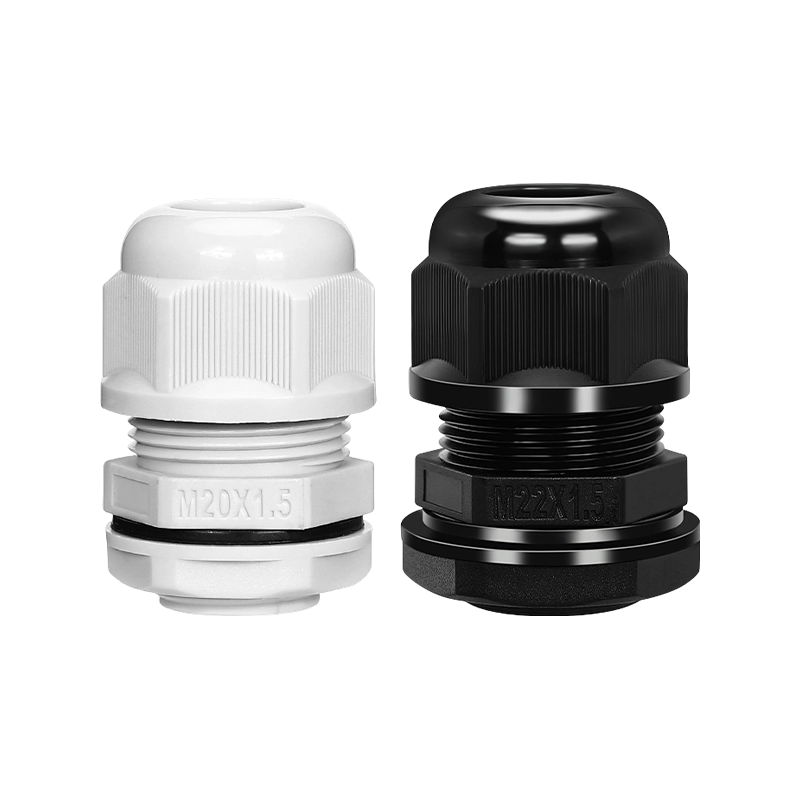

Eco-Friendly M-Type Plastic Cable Glands

Product Features:
Thread Specifications: Metric threads (ISO Metric / EN60423), compliant with EU standards.
The "short thread" version is suitable for mounting into cable entry holes on thin panels or for connecting to equipment featuring pre-tapped (internal) entry holes; the "long thread" version is suitable for mounting into cable entry holes on thick panels.
Material: Components A, C, and F are manufactured from UL-approved, halogen-free PA66 nylon (Fire Rating: UL 94V-2). (UL 94V-0 material is available upon request/custom order.)
Components B and D utilize standard EPDM rubber, which offers excellent outdoor weather resistance; customers may also specify NBR rubber for mechanical oil-resistance applications. (Other rubber materials/compounds are available upon request/custom order.)
Waterproof Rating: IP68 (rated for 5 bar pressure).
Operating Temperature: -40°C to 105°C (-40°F to 221°F); capable of withstanding temperatures up to 160°C (320°F) for short durations.

Professional Service Guarantee
Complimentary Documentation: We provide free access to RoHS/REACH compliance reports, IP68 ingress protection test reports, and UL94 flammability certification.
Sample Support: We offer free samples (10–20 pieces) for trial purposes, allowing users to verify compatibility with their specific cable diameters.
Ample Stock: We maintain substantial inventory of standard specifications; small-batch orders (100–500 pieces) can be shipped on the same day.
Selection Guides: We provide comparison charts for M-type, PG-type, G-type, and NPT-type threads to assist users in quickly identifying the most suitable model for their needs.
Environmental Compliance Commitment: We guarantee unconditional returns or exchanges if export operations are hindered due to issues regarding the environmental compliance of our product materials.
