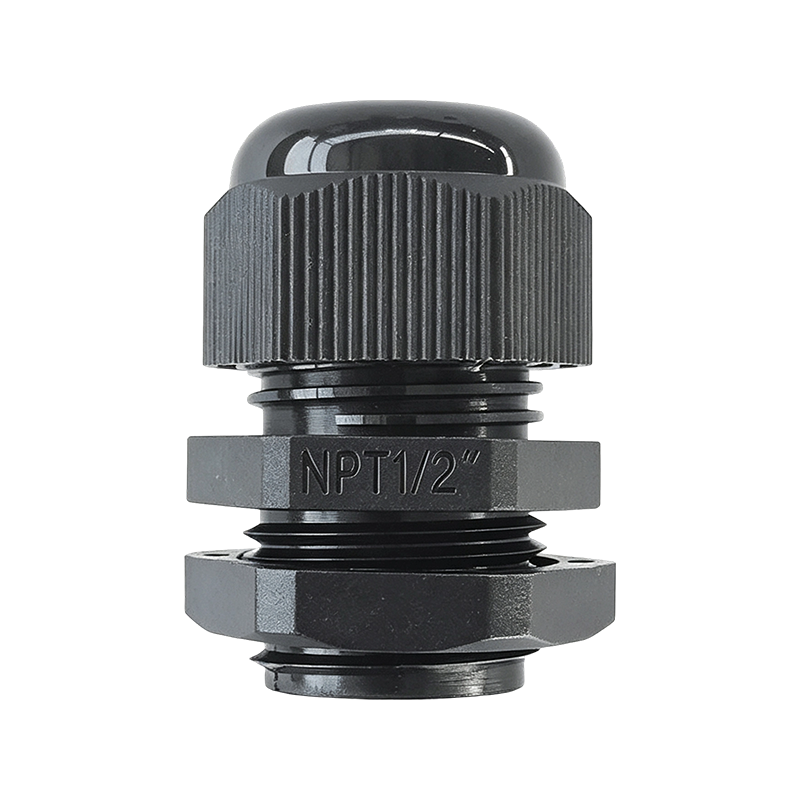

NPT-Type Plastic Cable Glands

Five Core Advantages
1. Self-Sealing Tapered Threads: No O-Ring Required
Leveraging the unique 1:56 taper design of NPT threads, the threads generate a sealing effect through their own interference fit upon tightening, eliminating the need to install an O-ring at the thread root. This ensures faster installation while simultaneously eliminating the risk of water leakage often associated with O-ring aging.
2. Fully Insulated & Flame-Retardant: Enhanced Electrical Safety
Nylon PA66 is an inherently insulating material that is non-conductive and rust-proof, thereby completely eliminating the risk of short circuits that can occur with metal cable glands. The flame-retardancy rating meets UL94 V2 standards (with V0 rating available as an option).
3. US-Standard Threads: Universally Accepted in North America
Strictly adhering to industry standards, these glands are perfectly compatible with equipment panel cutouts found in North American countries—including the United States, Canada, and Mexico. They serve as the standard choice for products destined for the North American market and for the maintenance of US-standard equipment.
4. IP68 High-Level Water and Dust Protection
Featuring a dual-protection system comprising the tapered thread seal and a clamping ring, these glands achieve an IP68 protection rating (withstanding submersion in water at a depth of 1 meter for 30 minutes without ingress). Since the NPT thread itself provides the primary seal, its watertight reliability surpasses that of cylindrical threads, which rely on O-rings for sealing.
5. Lightweight & Corrosion-Resistant: Ideal for Outdoor Use
Weighing only one-fifth to one-sixth as much as brass glands of the same size, the black, UV-resistant Nylon PA66 material offers excellent resistance to salt spray, weak acids, and weak alkalis. This ensures that the glands remain free from aging and cracking, even during prolonged outdoor exposure.

Typical Application Areas
North American Export Markets: Distribution boxes, control cabinets, junction boxes, and outdoor lighting equipment destined for the USA, Canada, and Mexico.
Integration with US-Standard Equipment: Electrical cable entry solutions for US-branded machine tools, water pumps, compressors, and generator sets.
Oil & Gas: Protection for control cabling in oilfield equipment, refineries, and natural gas stations (NPT is the standard thread type in the North American petroleum industry).
Instrumentation: Signal cable routing for pressure transmitters, flow meters, level gauges, and analyzers.
Water Treatment & Pumping Systems: Cable protection for water pumps, valves, and filtration equipment.
Industrial Automation: Cable protection solutions for US-branded equipment manufacturers, such as Honeywell.

Manufacturing & Quality Control Capabilities
Molding Process: Precision injection molding combined with tapered thread inspection; full range of specifications available from 1/4" NPT to 2" NPT.
Material Certification: PA66 raw materials are UL Yellow Card certified (flame retardancy ratings V2/V0) and comply with RoHS and REACH standards.
Quality Control: IP68 water immersion and airtightness testing, NPT thread Go/No-Go gauge inspection, tensile strength testing, and UL94 flame retardancy testing.
Sealing Design: No O-ring required—the tapered thread provides a self-sealing mechanism; the clamping ring is made of Nitrile Rubber (NBR) or Silicone.
Customization Services: Extended threads (for compatibility with thick-walled enclosures), UV resistance (black, UV-stabilized material), and custom color options.

Professional Service & Support
Documentation Provided: Free access to IP68 test reports, UL94 flame retardancy certifications, RoHS/REACH compliance declarations, and NPT thread inspection reports.
Sample Support: Trial samples available (10–20 pieces) to verify compatibility with actual cable diameters and thread specifications.
Stock Availability: Ample inventory of standard specifications; small-batch orders (100–500 pieces) can be shipped on the same day.
Selection Guides: Comprehensive comparison charts available for NPT, G, M, and PG thread types to assist users in quickly identifying the appropriate model.
