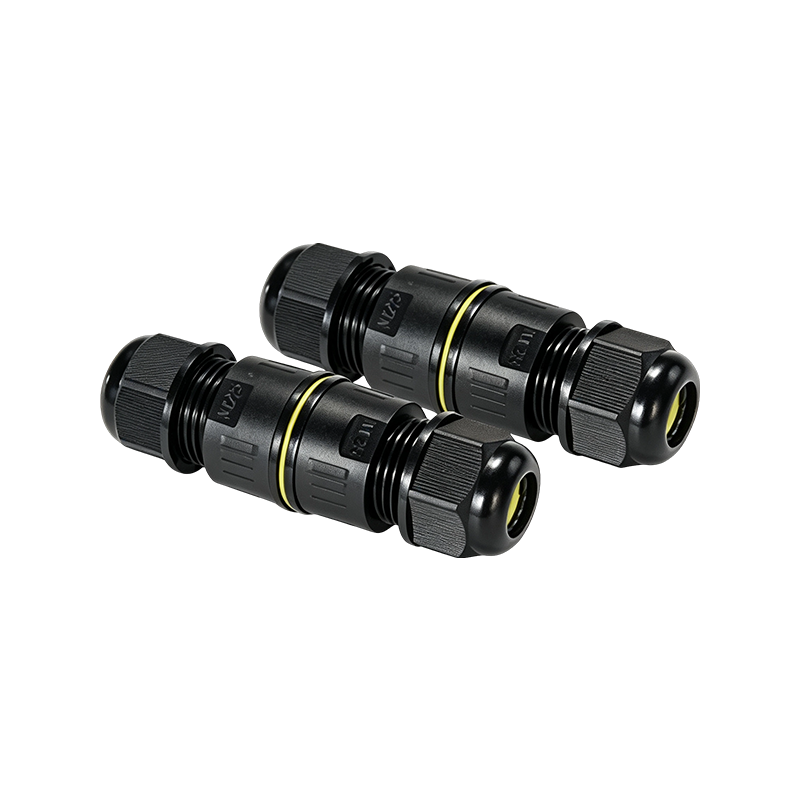

Flame-Retardant Mini Waterproof Connector MH-ZXM25

The Flame-Retardant Mini Waterproof Connector MH-ZXM25 is a compact electrical connector designed for applications requiring enhanced insulation and safety performance. Its flame-retardant housing provides reliable protection for outdoor and industrial wiring systems.

VIEW MORE Information VIEW MORE Specifications VIEW MORE Contact Us

Core Functions
Flame-Retardant Insulation
The flame-retardant housing improves electrical safety and supports applications with higher safety requirements.
Waterproof Sealing
The sealing structure protects internal components from moisture, dust, and environmental exposure.
Compact Installation
The mini design allows installation in limited spaces while maintaining reliable connection performance.
Stable Electrical Performance
The connector provides secure cable connection and consistent electrical transmission.

Specific Applications
The MH-ZXM25 Flame-Retardant Mini Waterproof Connector is suitable for LED lighting, automation equipment, electrical control systems, and outdoor devices.

Item Specification
Protection Rating IP68
Temperature Resistance -40°C to +105°C
Storage Temperature Ambient
Body Material PA66 Nylon (Flame-retardant)
O-ring Material Silicone (Eco-friendly)
Applicable Cable Range Φ5–8 mm, Φ9–12 mm, Φ10–14 mm
Conductor Material 59-1 Brass (Nickel-plated)
Connection Method Bayonet Press-fit
Applicable Wire Gauge 0.5–2.5 mm²
Withstand Voltage 1500V
Voltage/Current 25A / 380V
Flame Retardancy Rating UL-94V0
