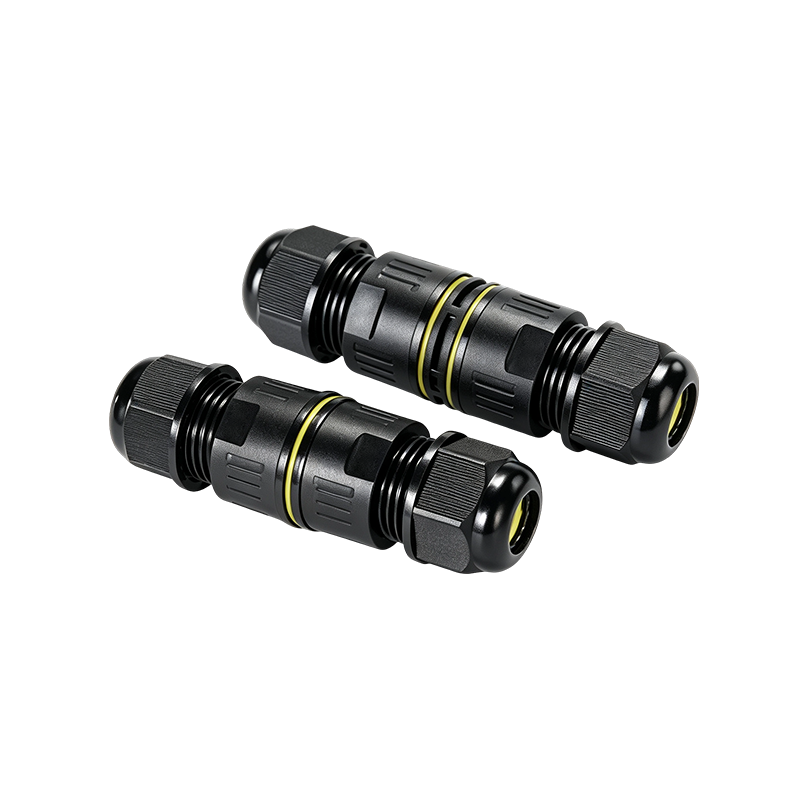

Multi-Pin Mini Waterproof Connector MH-ZXM25

The Multi-Pin Mini Waterproof Connector MH-ZXM25 is a compact multi-core connector designed for applications requiring multiple electrical connections in a limited space. It combines waterproof sealing with stable signal and power transmission.

VIEW MORE Information VIEW MORE Specifications VIEW MORE Contact Us

Core Functions
Multi-Core Connection
The multi-pin structure supports multiple circuit connections within a compact connector design.
Waterproof Protection
The sealed structure helps prevent water, dust, and moisture from affecting electrical performance.
Space-Saving Design
The compact structure is suitable for equipment with limited installation space.
Reliable Connection
Secure locking ensures stable operation under vibration and outdoor conditions.

Specific Applications
The MH-ZXM25 Multi-Pin Mini Waterproof Connector is used in automation equipment, control systems, sensors, industrial devices, and outdoor electrical products.

Item Specification
Protection Rating IP68
Temperature Resistance -40°C to +105°C
Storage Temperature Ambient
Body Material PA66 Nylon (Flame-retardant)
O-ring Material Silicone (Eco-friendly)

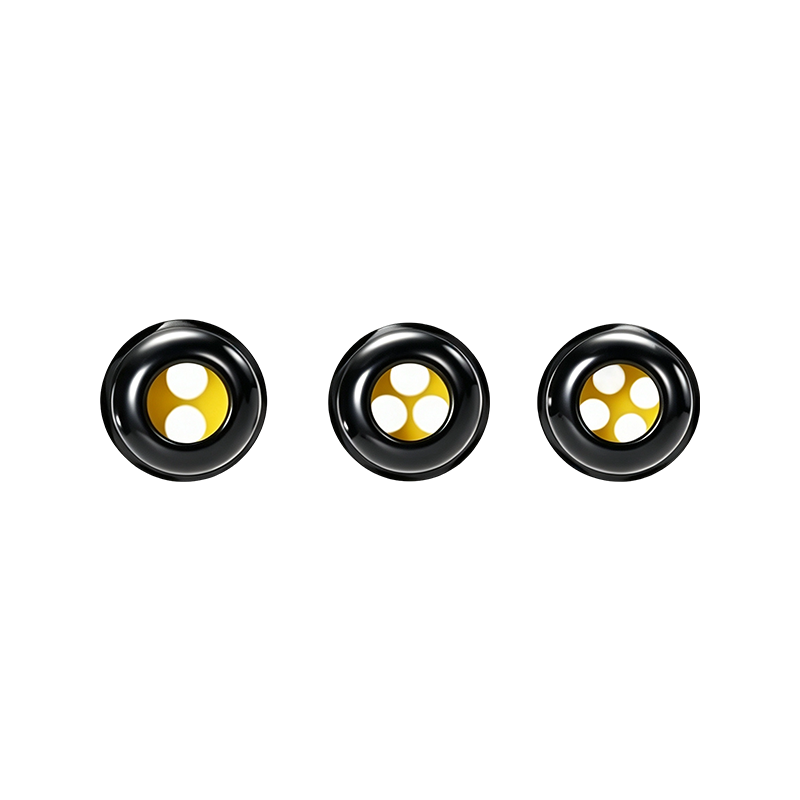

Applicable Cable Range Φ5–8 mm, Φ9–12 mm, Φ10–14 mm
Conductor Material Y2 Nickel-plated Copper + High-quality Stainless Steel
Connection Method Screw Clamping
Applicable Wire Cross-section 0.5–6 mm²
Withstand Voltage 2500V
Voltage/Current 400V/25A
Flame Retardancy Rating UL-94V0
