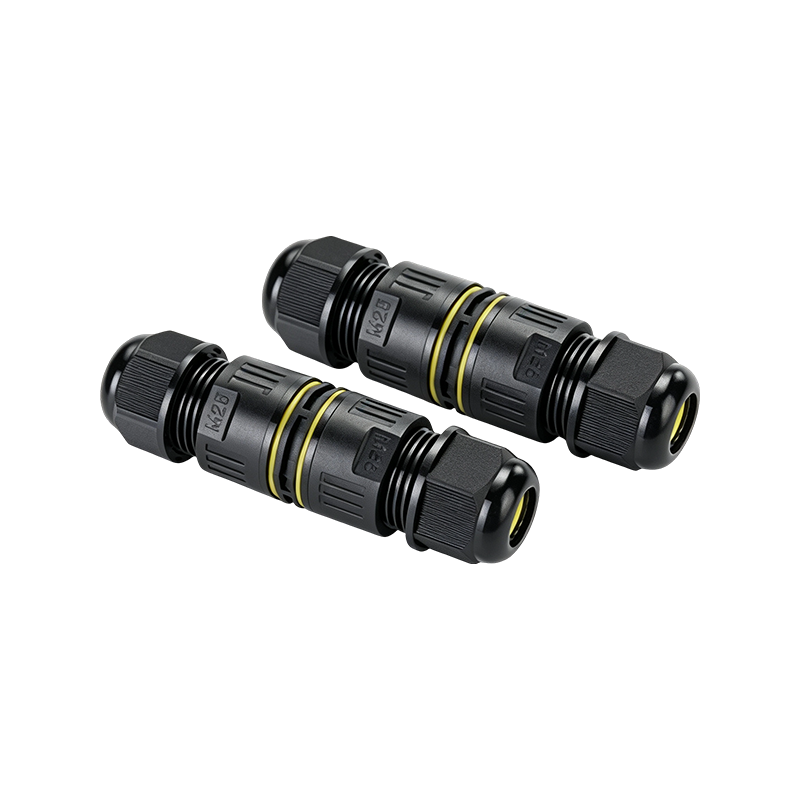

Bayonet Quick-Connect Waterproof Connector MH-ZXM25

The Bayonet Quick-Connect Waterproof Connector MH-ZXM25 is an outdoor electrical connector featuring a bayonet locking structure for fast and secure cable connection. It provides reliable waterproof protection and efficient installation for industrial and outdoor wiring applications.

VIEW MORE Information VIEW MORE Specifications VIEW MORE Contact Us

Core Functions
Fast Bayonet Locking
The bayonet connection mechanism enables quick assembly and secure locking, improving installation efficiency.
IP-Level Environmental Protection
The sealed structure helps protect electrical connections from water, dust, and outdoor contaminants.
Reliable Mechanical Strength
The durable housing provides good impact resistance and cable protection.
Easy Maintenance
The quick-connect design allows convenient installation and replacement during equipment maintenance.

Specific Applications
The MH-ZXM25 Bayonet Quick-Connect Waterproof Connector is widely used in outdoor lighting, photovoltaic systems, industrial equipment, control cabinets, and electrical connection projects.

Item Specification
Protection Rating IP68
Temperature Resistance -40°C to +105°C
Storage Temperature Ambient
Body Material PA66 Nylon (Flame-retardant)
O-ring Material Silicone (Eco-friendly)
Applicable Cable Range Φ5–8 mm, Φ9–12 mm, Φ10–14 mm
Conductor Material 59-1 Brass (Nickel-plated)
Connection Method Bayonet Press-fit
Applicable Wire Gauge 0.5–2.5 mm²
Withstand Voltage 1500V
Voltage/Current 25A / 380V
Flame Retardancy Rating UL-94V0
