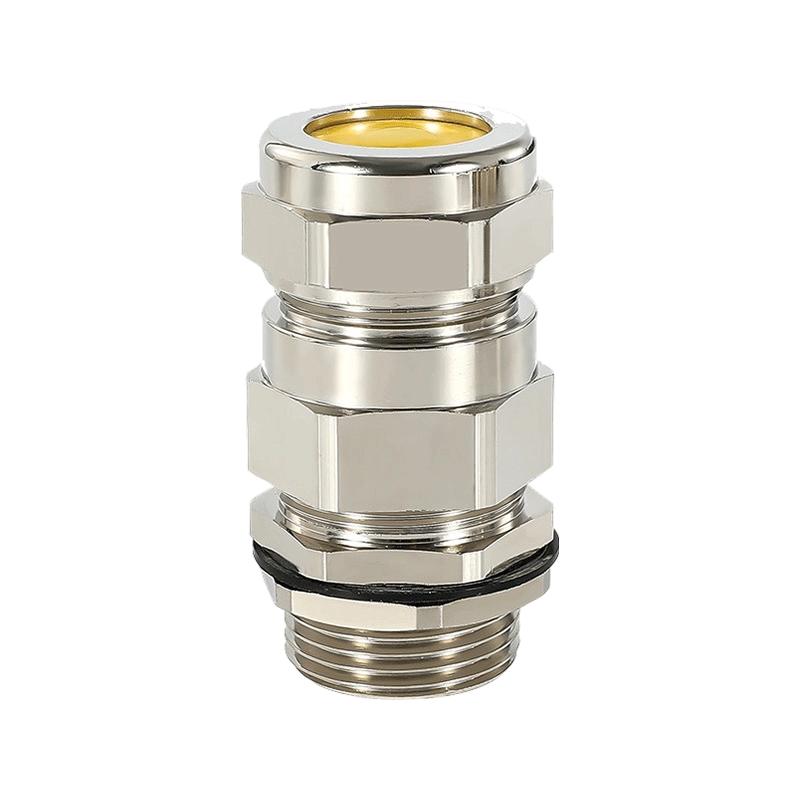

Brass Armored Cable Connector

Six Core Advantages
1. Reliable Armor Clamping with Exceptional Tensile Strength
Featuring a unique armor clamping ring design, the gland tightly grips steel tape or steel wire armor layers. Its tensile strength exceeds 80% of the cable's breaking force, effectively preventing the cable from detaching from the gland connection.
2. Conductive Armor Grounding: Safe and Reliable
An integrated grounding lug and clamping ring structure ensures reliable electrical continuity between the armor layer, the gland body, and the equipment enclosure, thereby satisfying electrical safety regulations regarding the grounding requirements for armored cables.
3. Flameproof Structural Design: Suitable for Hazardous Areas
The flameproof bushing mates with the main body to form a flameproof joint interface. The product holds ATEX/IECEx explosion-proof certifications (Exd/Exe) and is suitable for use in explosive hazardous areas, such as Zone 1 and Zone 2.
4. High Protection Rating: IP66/IP68
Utilizing a dual-seal structure (inner seal plus outer seal), the gland achieves a protection rating of IP66 (resistant to strong water jets) or IP68 (submersible up to 1 meter for 30 minutes at pressures up to 10 bar).
5. Nickel-Plated Brass Material: Corrosion-Resistant and Ageing-Resistant
The main body is manufactured from high-quality H59/H59-1 brass with a surface finish of chemical nickel plating. This treatment provides excellent resistance to salt spray corrosion as well as weak acids and alkalis, making the product ideally suited for corrosive environments such as marine and chemical industry settings.
6. Multiple Thread Standards—Globally Compatible
Offering four distinct thread standards—M (Metric), PG (German), G (British), and NPT (American)—to meet the diverse equipment cutout matching requirements of markets worldwide.
