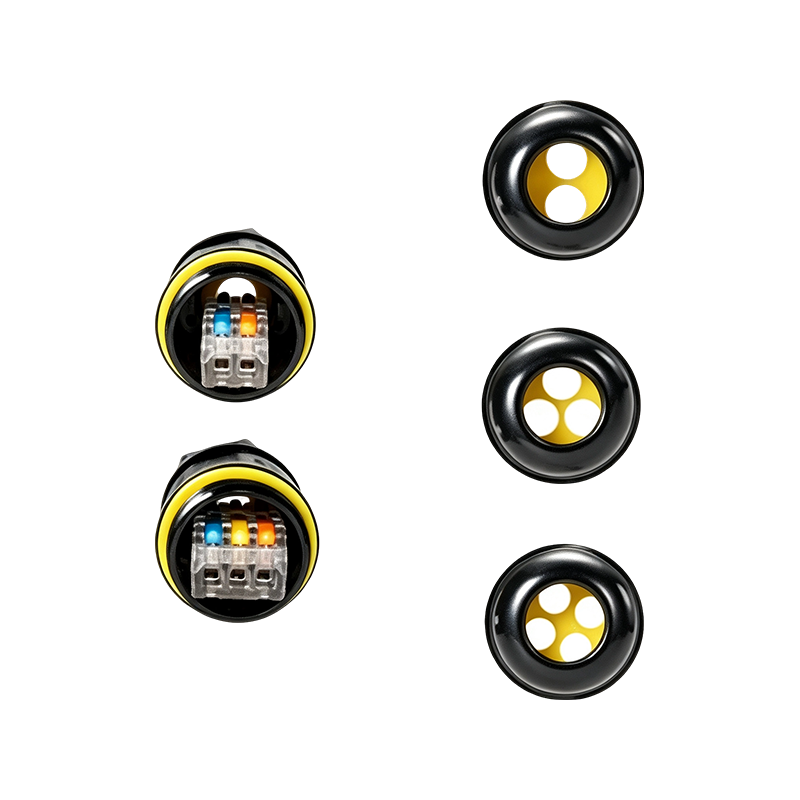

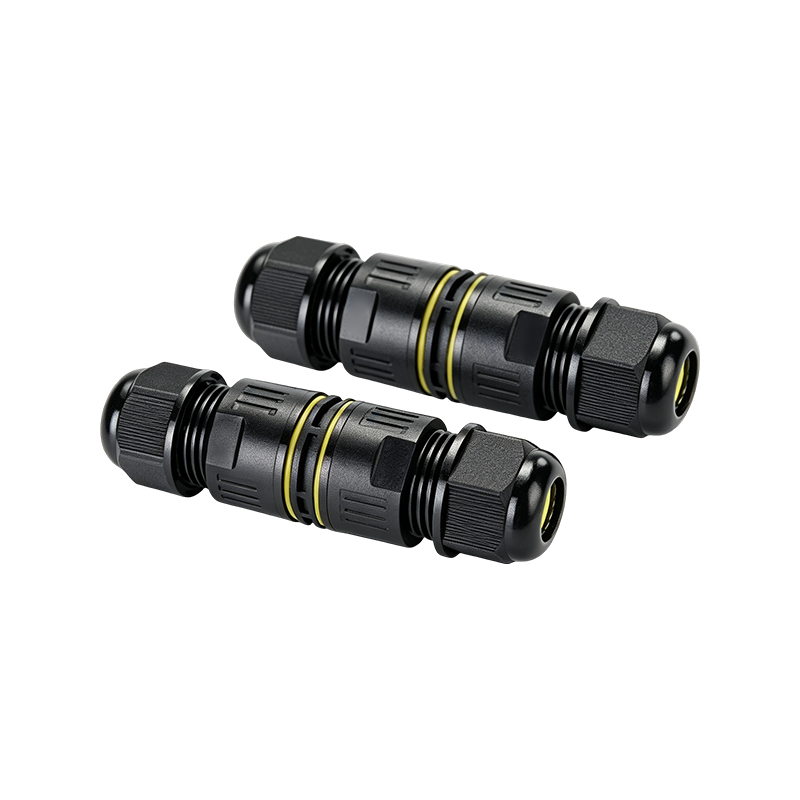

Split-Type Quick-Connect Waterproof Connector MH-ZXFTM25

The Split-Type Quick-Connect Waterproof Connector MH-ZXFTM25 is designed for convenient cable installation and maintenance through a separable connector structure. It provides efficient connection solutions for outdoor and industrial electrical systems.

VIEW MORE Information VIEW MORE Specifications VIEW MORE Contact Us

Core Functions
Split Structure Design
The separable structure simplifies installation, inspection, and maintenance operations.
Quick Connection
The quick-connect mechanism reduces installation time and improves wiring efficiency.
Waterproof Protection
The sealed design helps protect connections from water, dust, and humidity.

Flexible Application
Suitable for various outdoor electrical connection requirements.

Specific Applications
The MH-ZXFTM25 Split-Type Quick-Connect Waterproof Connector is suitable for outdoor lighting, photovoltaic systems, industrial equipment, and electrical control applications.

Item Specification
Protection Rating IP68
Temperature Resistance -40°C to +105°C
Storage Temperature Ambient
Body Material PA66 Nylon (Flame-retardant)
O-ring Material Silicone (Eco-friendly)
Applicable Cable Range Ø5–8 mm, Ø9–12 mm, Ø10–14 mm
Conductor Material Y2 Nickel-plated Red Copper + High-quality Stainless Steel
Applicable Wire Cross-section 0.5–2.5 mm²
Test Voltage 2500V
Rated Voltage/Current 400V/25A
Flame Retardancy Rating UL-94V0
