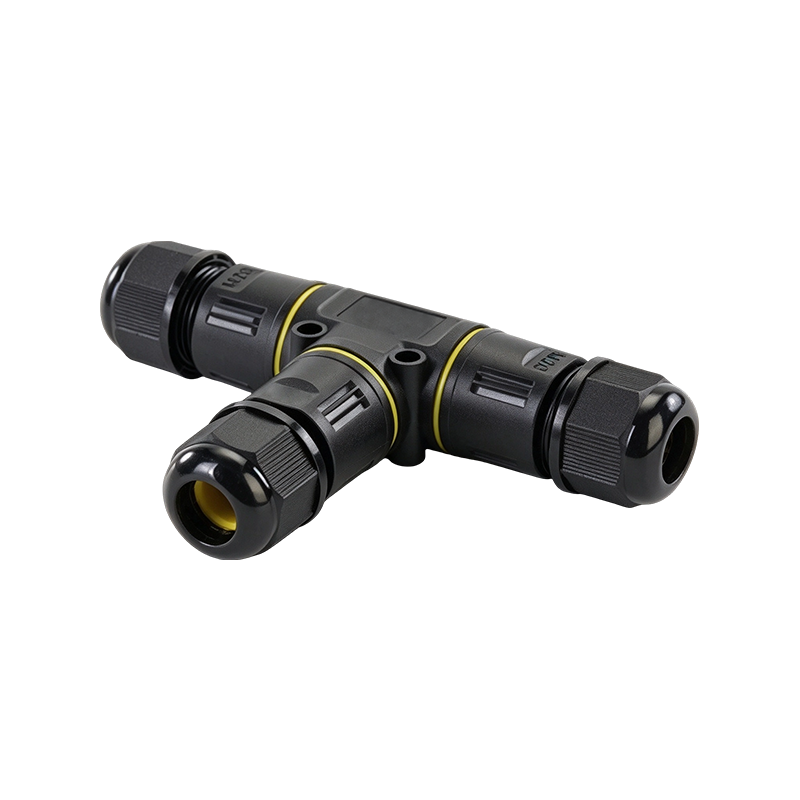

T-Type Quick-Connect Waterproof Connector MH-TXM20

The T-Type Quick-Connect Waterproof Connector MH-TXM20 is a branch cable connector designed for fast and reliable three-way electrical connections. Featuring a T-shaped structure and quick-connect design, it enables efficient cable distribution while maintaining waterproof protection.
With a durable insulating housing and sealed connection structure, this connector is suitable for outdoor and industrial wiring environments requiring convenient installation and stable performance.

VIEW MORE Information VIEW MORE Specifications VIEW MORE Contact Us

Core Functions
Fast T-Type Branch Connection
The T-shaped design allows one main cable to connect with branch cables, simplifying wiring layouts and improving installation efficiency.
Quick Installation Design
The quick-connect structure reduces installation time and allows convenient field assembly without complicated procedures.
Waterproof and Dustproof Protection
The sealed design helps prevent water, dust, and moisture from entering the connector, ensuring stable operation in outdoor environments.
Reliable Cable Fixation
The locking structure maintains secure cable connections and reduces loosening caused by vibration or external force.

Specific Applications
The MH-TXM20 T-Type Quick-Connect Waterproof Connector is widely used in outdoor lighting, photovoltaic systems, LED projects, monitoring equipment, industrial automation, and electrical distribution applications.

Item Specification
Protection Rating IP68
Temperature Resistance -40°C to +105°C
Storage Temperature Ambient
Body Material PA66 Nylon (Flame-retardant)
O-ring Material Silicone (Eco-friendly)

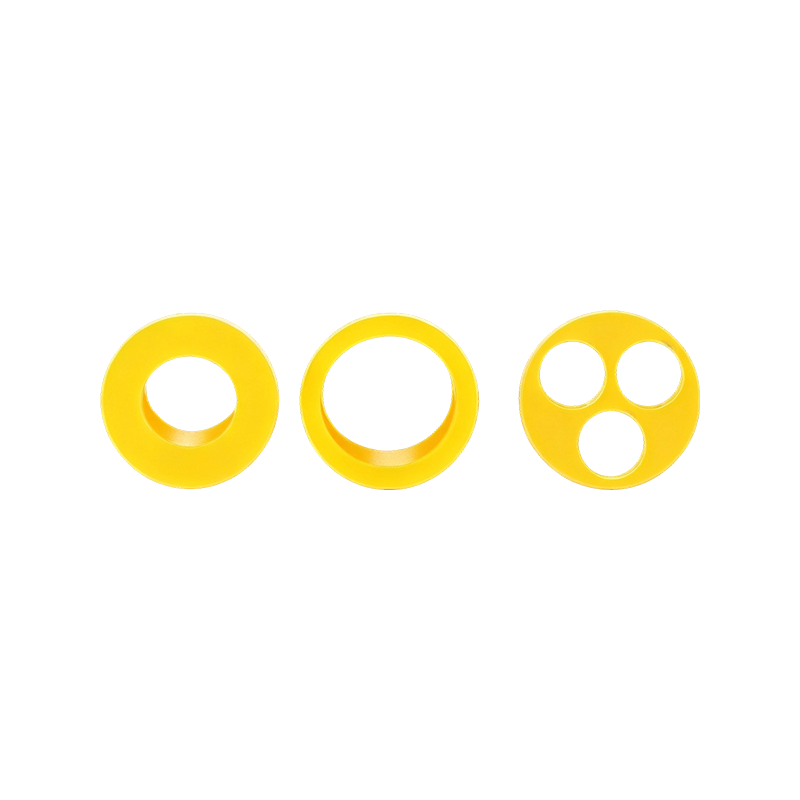

Applicable Cable Range Φ5–8 mm, Φ9–12 mm
Wiring Method Snap-lock Press Connection
Conductor Material Y2 Nickel-plated Red Copper + High-quality Stainless Steel
Applicable Wire Cross-section 0.5–2.5 mm²
Withstand Voltage 1500V
Voltage/Current 16A / 380V
Flame Retardancy Rating UL-94V0
