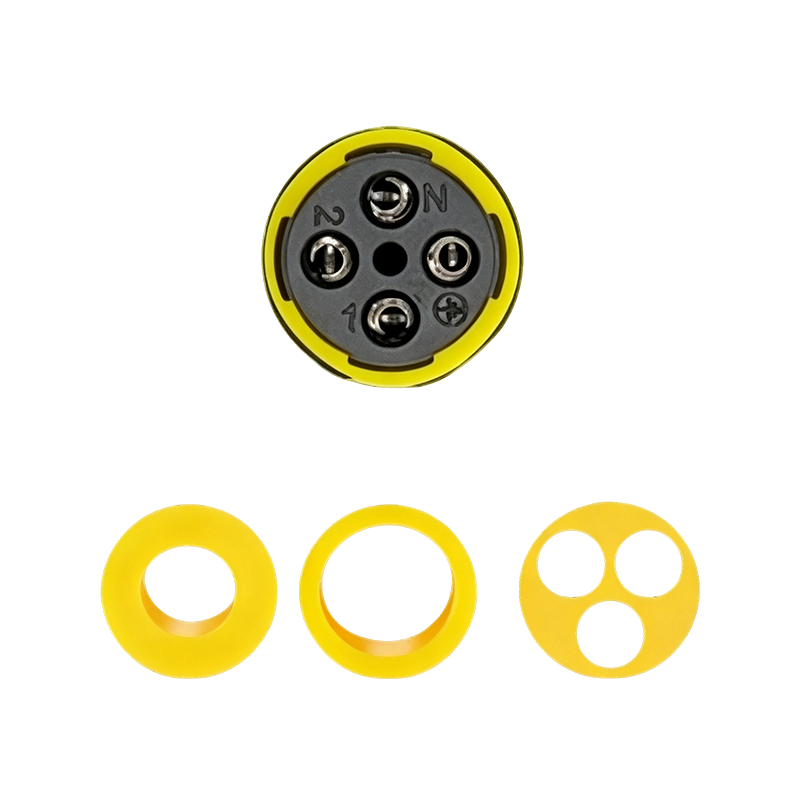

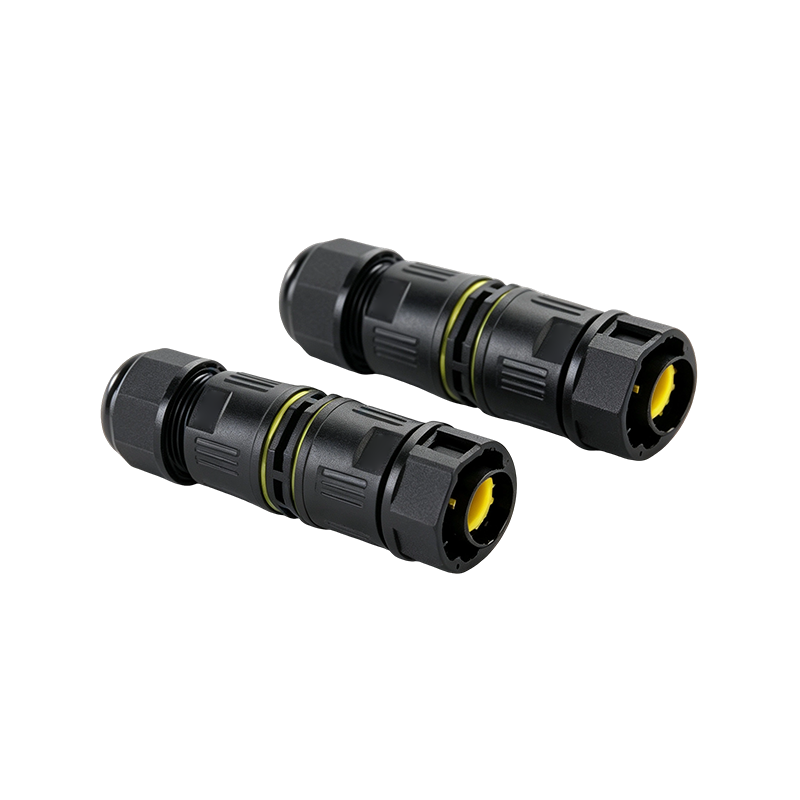

Screw-Clamp Mini Waterproof Connector MH-ZXM20

The Screw-Clamp Mini Waterproof Connector MH-ZXM20 is a compact cable connector designed with a screw-clamp structure for secure and convenient wiring. It combines compact dimensions with waterproof protection, making it suitable for small electrical equipment and outdoor installations.

VIEW MORE Information VIEW MORE Specifications VIEW MORE Contact Us

Core Functions
Secure Screw-Clamp Connection
The screw-clamp design provides stable cable fixing and simplifies installation and maintenance.
Compact Structure
The mini design helps reduce installation space requirements while maintaining reliable electrical connection.
Waterproof Protection
The sealed structure helps prevent moisture and dust from affecting internal components.

Flexible Application
Suitable for various small electrical devices requiring reliable cable connections.

Specific Applications
The MH-ZXM20 Screw-Clamp Mini Waterproof Connector is commonly used in LED lighting, automation equipment, sensors, outdoor electrical devices, and control systems.

Item Specification
Protection Rating IP68
Temperature Resistance -40°C to +105°C
Storage Temperature Ambient
Body Material PA66 Nylon (Flame-retardant)
O-ring Material Silicone (Eco-friendly)
Applicable Cable Range Φ5–8 mm, Φ9–12 mm
Connection Method Screw Terminal
Conductor Material Nickel-plated 59-1 Brass
Applicable Wire Gauge 0.5–4 mm²
Test Voltage 250V
Rated Voltage/Current 400V/25A
Flame Retardancy Rating UL-94V0
