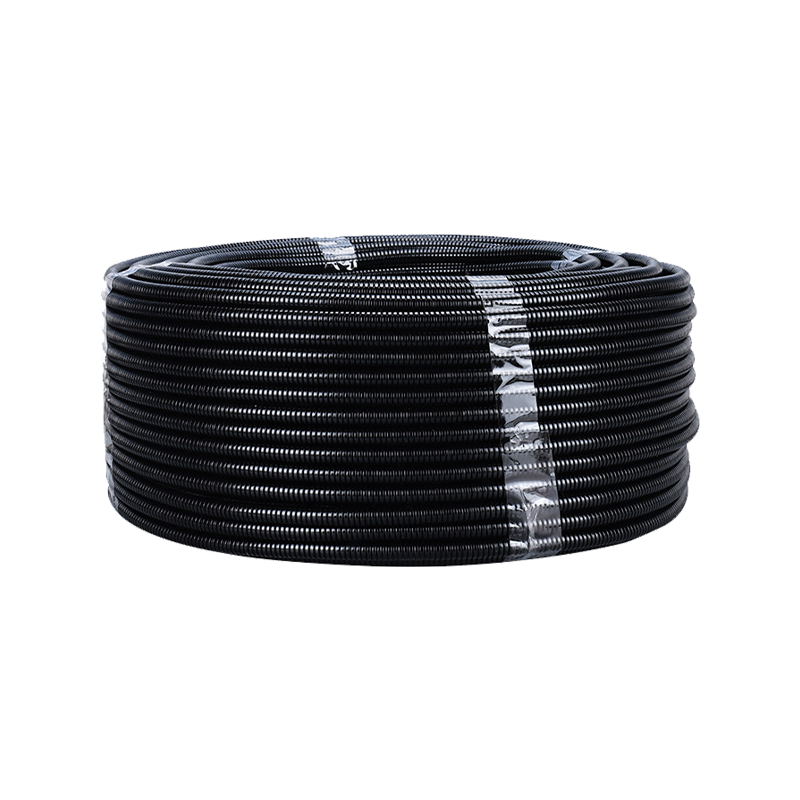

PP Flame-Retardant Corrugated Pipe

Five Core Advantages
1. Excellent Chemical Corrosion Resistance
It exhibits outstanding resistance to strong acids and alkalis—including hydrochloric acid, sulfuric acid, sodium hydroxide, and sodium hypochlorite—far surpassing the performance of PA (polyamide) and PE (polyethylene) materials. This makes it particularly well-suited for corrosive environments found in electroplating facilities, chemical plants, and laboratories.
2. UL94 V0/V2 Flame Retardancy: Ensuring Safety
The flame-retardant grade PP corrugated tubing can achieve a UL94 V0 rating (self-extinguishing upon removal from flame); having passed vertical burning tests, it poses no risk of dripping materials igniting underlying surfaces. The V2 rating offers a more economical alternative.
3. Superior Temperature Resistance Compared to Standard Plastic Tubing
It maintains a long-term operating temperature range of -30°C to +110°C, with the ability to withstand short-term exposure to +140°C (under no mechanical load). It retains its structural stability even when positioned near high-temperature pipelines or within heat-generating equipment.
4. Cost-Effective with Outstanding Value
Compared to flame-retardant PA tubing, the raw material cost for flame-retardant PP tubing is lower, making it ideal for large-volume applications (such as embedded wiring in construction projects or municipal engineering). This allows for effective project budget control while fully meeting flame-retardancy requirements.
5. Balanced Flexibility and Compression Resistance
The circular corrugated structure provides excellent ring stiffness, allowing the tubing to recover its shape after being subjected to compression. Simultaneously, it maintains moderate flexibility, featuring a minimum bending radius of approximately 4 to 6 times its inner diameter, which facilitates easy on-site wiring and installation.

Typical Application Scenarios
Chemical and Electroplating Industries: Cable protection along electroplating tank edges, protective sheathing for heat-tracing cables on chemical pipelines, and internal wiring for laboratory equipment (resistant to corrosion from acid and alkali fumes).
Wastewater Treatment Plants: Protection for control cables in aeration tanks, power distribution lines in chemical dosing rooms, and cable sheathing in sludge dewatering workshops (offering combined resistance to moisture, corrosion, and fire). Industrial Electrical Distribution: Internal wiring for electrical control cabinets, machine tool control circuits, and branch cabling for production lines (V0 flame retardancy rating; complies with fire safety regulations).
Embedded Building Wiring: Electrical conduits embedded in concrete, protective tubing for fire safety circuits in public buildings (lower cost than PA; flame retardancy meets national standards).
Home Appliances & Office Equipment: Internal wiring harnesses for air conditioners; internal cabling for printers and photocopiers (V2 flame retardancy rating; complies with appliance safety standards).

Production & Quality Control Capabilities
Molding Process: Dedicated flame-retardant PP extrusion lines featuring inline diameter and wall thickness monitoring. Inner diameter range: 8mm–65mm (closed-slit type) and 10mm–50mm (open-slit type).
Flame Retardancy Testing: UL94 vertical burning tests are conducted on every production batch (confirming V0 or V2 ratings); test videos and reports are archived for future reference.
Dielectric Withstand Voltage Testing.
Other Testing Items: Acid/Alkali Immersion Testing (10% H₂SO₄/NaOH solution; no deformation after 24 hours), Low-Temperature Impact Testing (-30°C), Ring Stiffness Testing, etc.
Customization Services: Flame retardancy ratings (V0/V2), open-slit or closed-slit structures, UV resistance (using black material for outdoor applications), and custom colors (Gray/Orange/Blue).

Professional Service & Support
Provision of UL94 flame retardancy certification reports, RoHS/REACH environmental compliance declarations, and third-party acid/alkali resistance test reports.
Free samples available for verification under actual operating conditions (corrosion immersion testing, flame retardancy testing, high-temperature aging).
Support for small-batch trial orders (minimum 1,000 meters); standard specifications delivered within 7 days.
Provision of a comparative selection guide for PP, PA, and PE flame-retardant corrugated conduits to assist users in selecting the most cost-effective material based on their specific operating environment.
