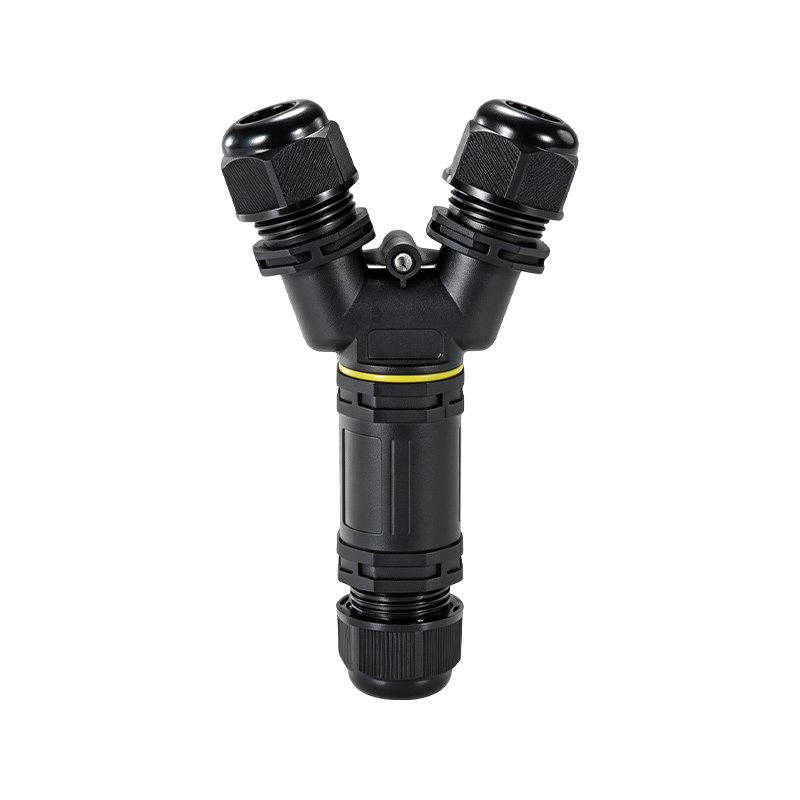

Y-Type Quick-Connect Waterproof Connector MH-YXM25

The Y-Type Quick-Connect Waterproof Connector MH-YXM25 is a Y-shaped cable connector designed for fast branch connections in outdoor electrical systems. It allows flexible cable splitting while maintaining reliable waterproof protection.
The quick-connect structure improves installation efficiency, making it suitable for photovoltaic, lighting, and industrial wiring applications.

VIEW MORE Information VIEW MORE Specifications VIEW MORE Contact Us

Core Functions
Flexible Y-Type Cable Distribution
The Y-shaped structure enables one cable line to branch into two directions, simplifying cable arrangement.
Quick Connection Structure
The quick-connect design supports efficient installation and reduces assembly time.
Reliable Waterproof Protection
The sealed structure protects electrical connections from rain, dust, and moisture.
Secure Connection Performance
The locking mechanism helps prevent accidental separation caused by vibration or cable movement.

Specific Applications
The MH-YXM25 Y-Type Quick-Connect Waterproof Connector is commonly used in solar photovoltaic systems, outdoor lighting, garden lighting, monitoring systems, and industrial electrical equipment.

Item Specification
Protection Rating IP68
Temperature Resistance -40°C to +105°C
Storage Temperature Ambient
Body Material PA66 Nylon (Flame-retardant)

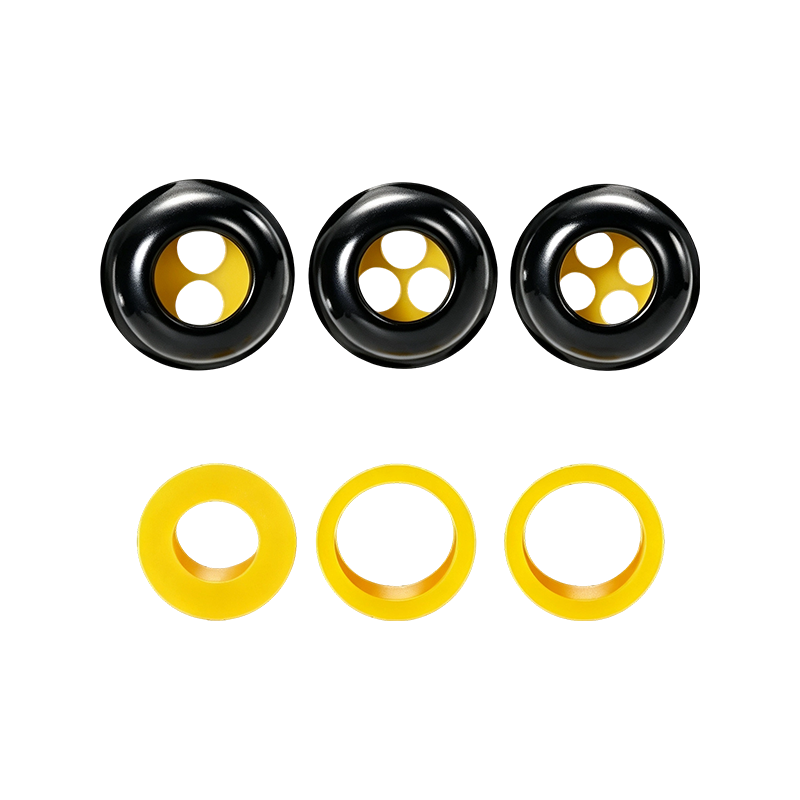

O-ring Material Silicone (Eco-friendly)
Applicable Cable Range Ø5–8 mm, Ø9–12 mm, Ø10–14 mm
Conductor Material 59-1 Brass (Nickel-plated)
Wiring Method Screw Clamp
Applicable Wire Cross-section 0.5–4 mm²
Withstand Voltage 1500V
Voltage/Current 450V / 32A
Flame Retardancy Rating UL-94V0
