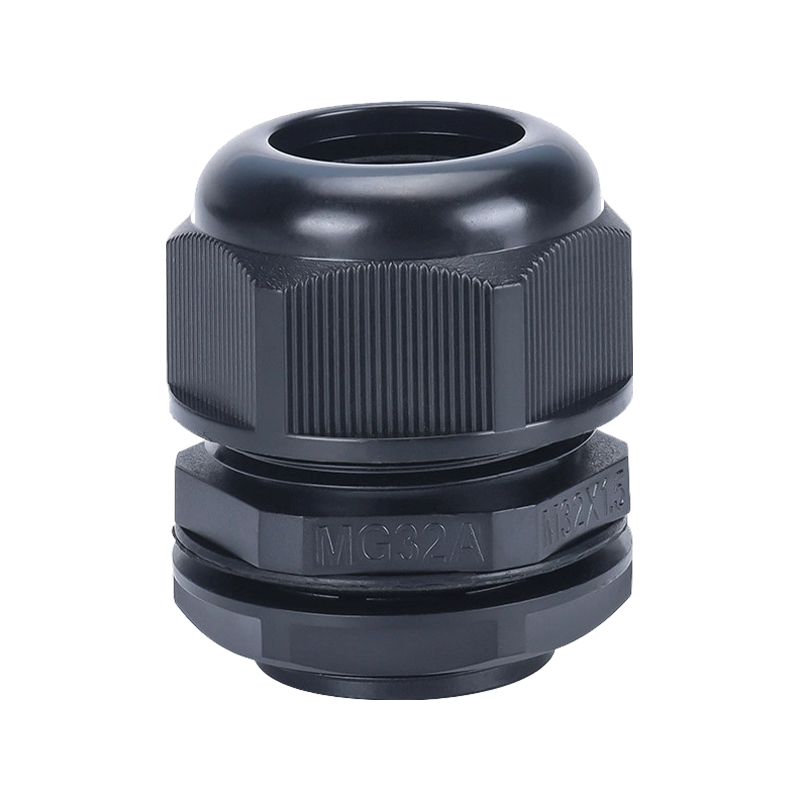

Split Plastic Cable Glands

Split Plastic Cable Glands: Core Advantages
1. No Cable Cutting Required; Easy Installation
The split-body design allows the connector to be opened and clamped directly onto any point of the cable, eliminating the need to thread it from the cable end. This means no cable cutting and no need to dismantle pre-installed connectors, significantly reducing on-site installation difficulty and time costs.
2. IP68 High-Level Waterproof Sealing
The split sealing ring and clamping ring are compressed during screw-locking, ensuring the two body halves join tightly. The protection rating reaches IP68 (submersible up to 1 meter for 30 minutes without water ingress), offering sealing performance comparable to one-piece connectors.
3. Compatible with Pre-Assembled Cable Harnesses
Particularly suitable for cable harnesses with pre-installed connectors at both ends, as well as for providing sealing protection at multi-core cable branching points.
4. Fully Insulated, Flame-Retardant Material
Constructed from Nylon PA66 raw material, it is fully insulated and non-conductive. It features a flame-retardant rating of UL94 V2 (V0 optional), complies with electrical safety standards, and is suitable for applications requiring high insulation levels, such as distribution cabinets and control boxes.
5. Wide Clamping Range; Reliable Strain Relief
The split clamping ring uniformly grips the cable jacket during tightening, providing reliable strain relief and anti-torsion capabilities to prevent the cable from loosening or rotating.
6. Corrosion-Resistant and Anti-Aging; Suitable for Outdoor Use
Made from black, UV-resistant Nylon material, it withstands salt spray, weak acids, weak bases, and grease. It resists aging and cracking, ensuring durability during long-term outdoor use.

Installation Method:
Mount directly onto a machine panel with a matching thread size. Thread the cable through the connector's central bore from the opposite end, then tighten the compression nut. This process requires no disassembly of parts, offering a time-saving and convenient installation solution.

Product Features:
Features a unique design utilizing special clamping claws and a clamping ring, offering a wide cable clamping range. It provides exceptional strain relief, protects the cable, and offers resistance against water, dust, salt, weak acids, alcohol, oil, grease, and common solvents.
