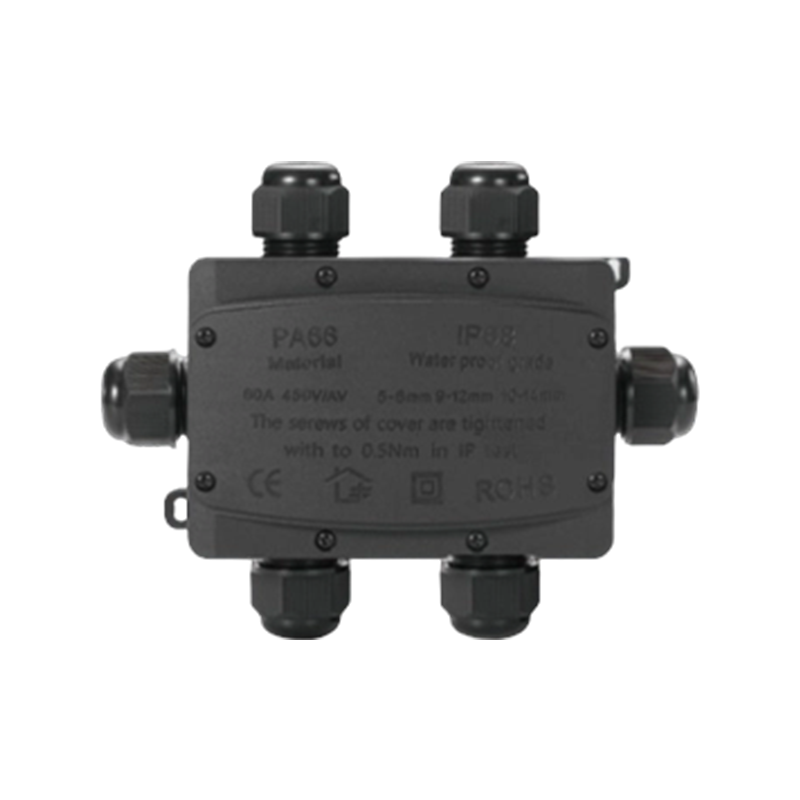

Mini Sealed Waterproof Box F5-6T/8T

The Mini Sealed Waterproof Box F5-6T/8T is a multi-port electrical junction box designed for applications requiring enhanced sealing and flexible cable distribution. Its sealed structure helps maintain reliable cable connections in outdoor and humid environments.

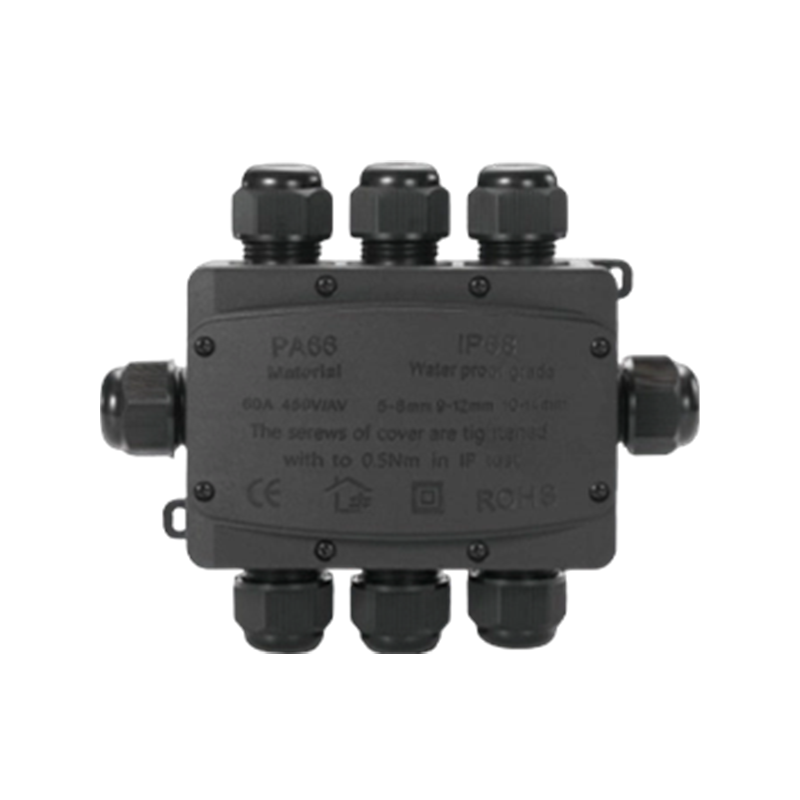

Available in 6-way and 8-way versions, it supports various wiring configurations.

VIEW MORE Information VIEW MORE Specifications VIEW MORE Contact Us

Core Functions
Enhanced Sealing Structure
The sealed design improves protection against water, dust, and external contaminants.
Multi-Cable Distribution
The 6-way and 8-way configurations provide flexible connection options for complex wiring systems.
Reliable Electrical Protection
The enclosure protects internal connections from environmental impact.
Space-Saving Design
The compact structure supports efficient installation in different equipment layouts.

Specific Applications
The F5-6T/8T Mini Sealed Waterproof Box is suitable for outdoor lighting, photovoltaic systems, automation equipment, monitoring installations, and industrial electrical projects.

Item Specification
Protection Rating IP68
Temperature Resistance -40°C to +105°C
Storage Temperature Ambient
Body Material PA66 Nylon (Flame-retardant)
O-ring Material Silicone (Eco-friendly)
Applicable Cable Range Φ5–8, Φ9–12, Φ10–14 (3 plug sizes available)
Connection Method Screw Terminal
Conductor Material 59-1 Brass
Applicable Wire Gauge 0.5–10 mm²
Withstand Voltage 1500V
Voltage/Current 450V / 60A
Flame Retardancy Rating UL-94V0
