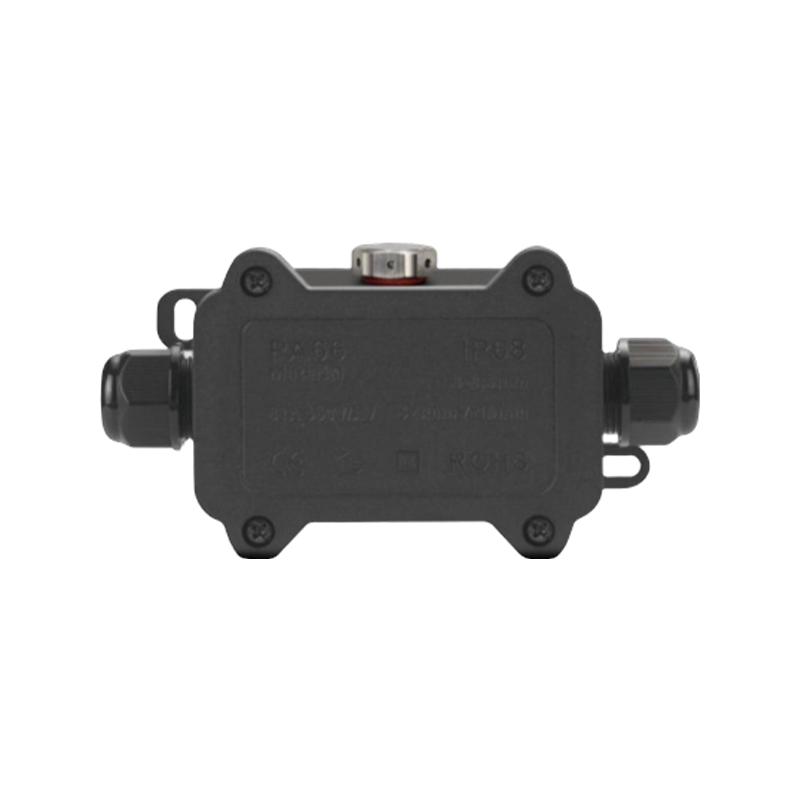

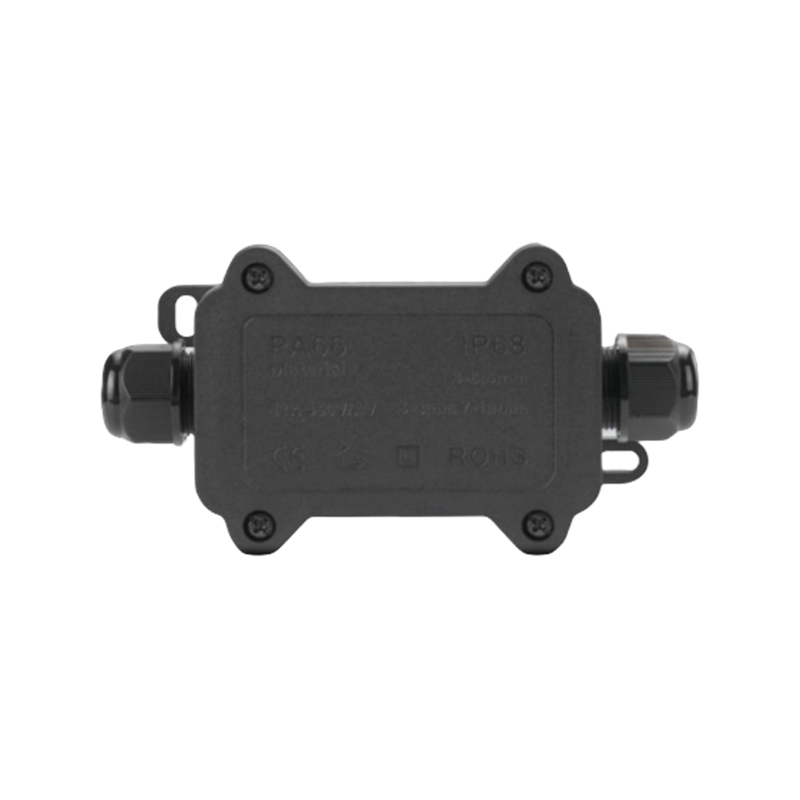

Mini 2-Way Waterproof Box F1-2T

The Mini 2-Way Waterproof Box F1-2T is a compact electrical enclosure designed for simple cable connection and protection in outdoor environments. Its small structure makes it suitable for installations where space is limited.
With waterproof sealing and insulated housing, it protects internal electrical connections from moisture, dust, and outdoor conditions.

VIEW MORE Information VIEW MORE Specifications VIEW MORE Contact Us

Core Functions
Compact Cable Protection
The mini design saves installation space while providing reliable protection for electrical connections.
Waterproof Sealing
The sealed structure helps prevent water and dust intrusion during outdoor operation.
Easy Installation
The compact enclosure supports convenient wiring and maintenance.
Durable Insulation
The insulated housing provides electrical safety and mechanical protection.

Specific Applications
The F1-2T Mini Waterproof Box is suitable for LED lighting, sensors, outdoor electrical devices, garden equipment, and small automation systems.

Item Specification
Protection Rating IP68
Temperature Resistance -40°C to +105°C
Storage Temperature Ambient
Body Material PA6 Nylon (Flame-retardant)
O-ring Material Silicone (Eco-friendly)
Applicable Cable Range Φ3–6.5 mm, Φ5–8 mm, Φ7–10 mm (3 gland plug sizes available)
Connection Method Screw Terminal
Conductor Material Nickel-plated 59-1 Brass
Applicable Wire Cross-section 0.5–4 mm²
Withstand Voltage 1500V
Voltage/Current 16A / 450V
Flame Retardancy Rating UL-94V0
