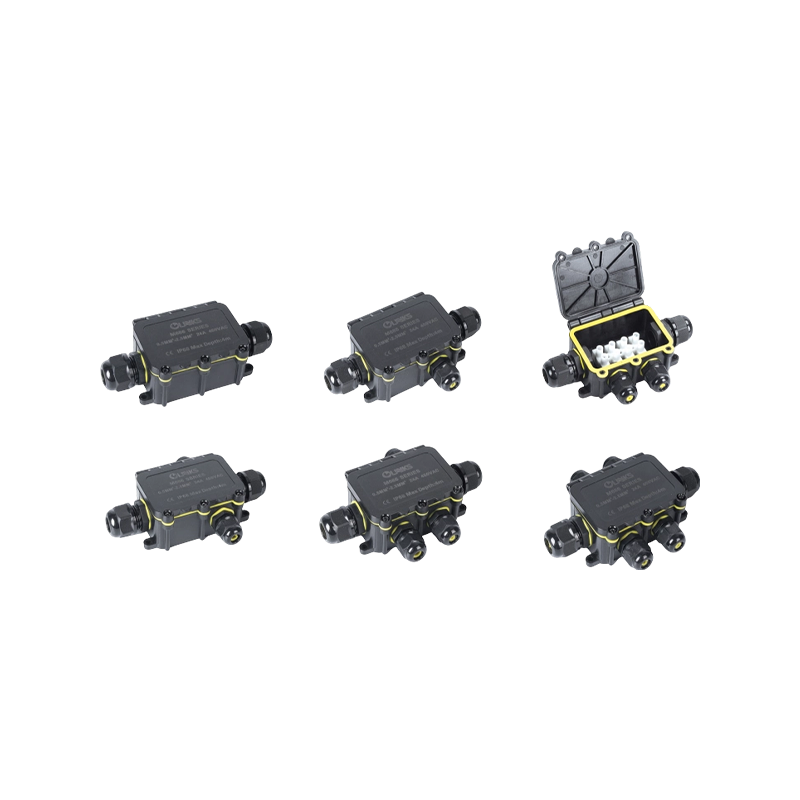

IP68 Waterproof Outdoor Electrical Junction Box M686

The IP68 Waterproof Outdoor Electrical Junction Box M686 is a professional cable distribution enclosure designed for outdoor and humid environments. The box features flame-retardant PA66 housing, integrated silicone sealing strip, and built-in terminal blocks for convenient electrical connection.
Supporting multiple port configurations from 2-way to 6-way, it provides flexible wiring solutions for photovoltaic systems, outdoor lighting, and automation equipment.

VIEW MORE Information VIEW MORE Specifications VIEW MORE Contact Us

Core Functions
IP68 Waterproof & Dustproof Protection
The integrated sealing structure prevents water, dust, and external contaminants from entering the enclosure.
Multiple Cable Routing Options
Available in different port versions, the junction box supports various cable distribution requirements.
Convenient Wiring Maintenance
The hinged flip-top design allows easy opening and maintenance, reducing installation and service time.
Reliable Electrical Connection
Built-in terminal blocks enable fast and secure wire connection for outdoor electrical systems.

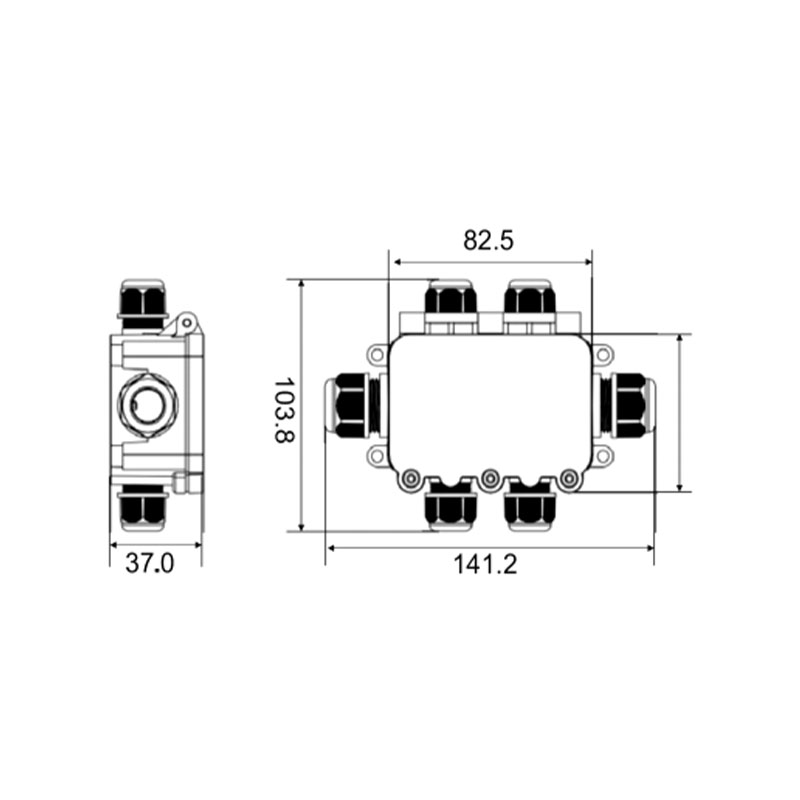

Dimension Drawing Item Specification
200019 Outer Cable Diameter M20: 5-9mm, 9-12mm
M16: 5-7mm, 7-10mm
Voltage 450V
Current 16A
Temperature Rating -40°C~+105°C
IP Grade IP68
Material PA66
Wire Section 0.5mm² - 6mm²
