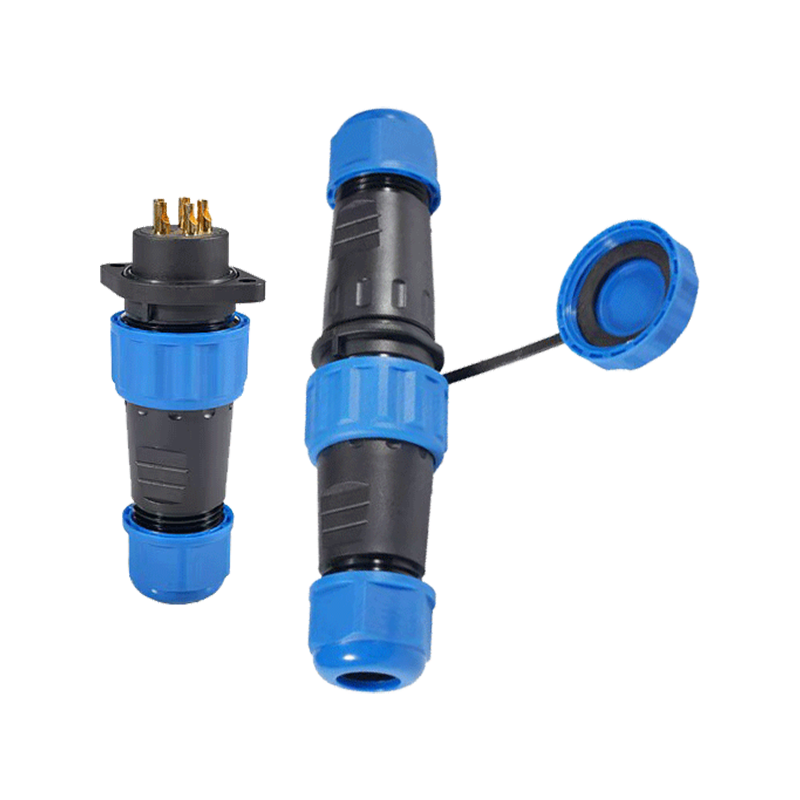

SD Series Aviation Connectors with Solder Termination
The SD Series Aviation Connector with Solder Termination is a circular electrical connector designed for reliable signal and power transmission in industrial and electronic applications. It features a threaded locking structure and solder termination design, ensuring secure connection and stable electrical performance. The connector adopts a PA66/PA6 thermoplastic shell, PPS high-temperature-resistant insulator (up to 260°C), and gold-plated copper contacts, with an operating temperature range of -25°C to +85°C and a plug cycle of more than 500 times.
Information
Specifications
Contact Us

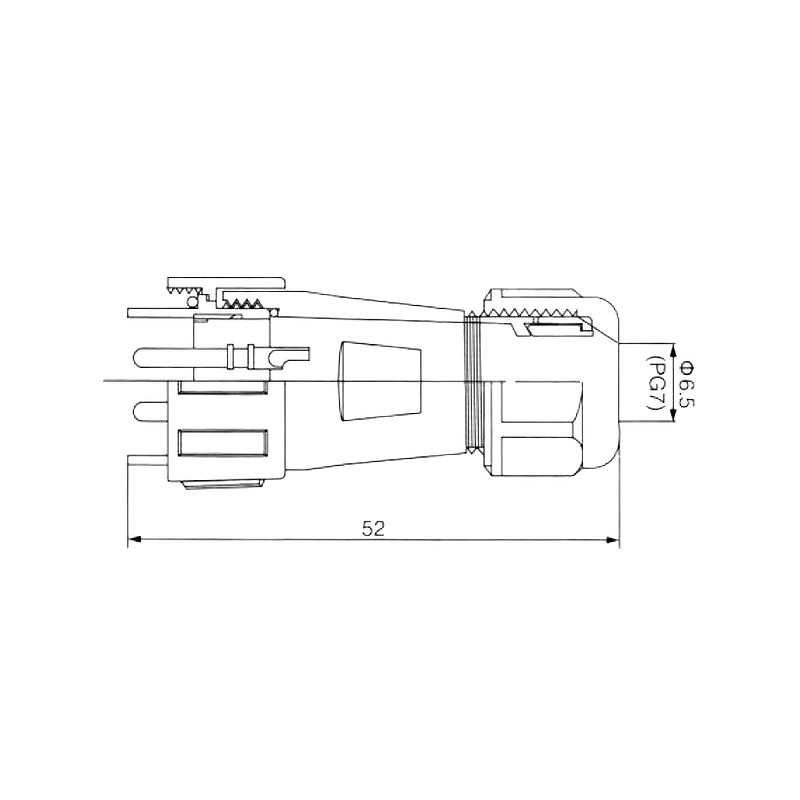

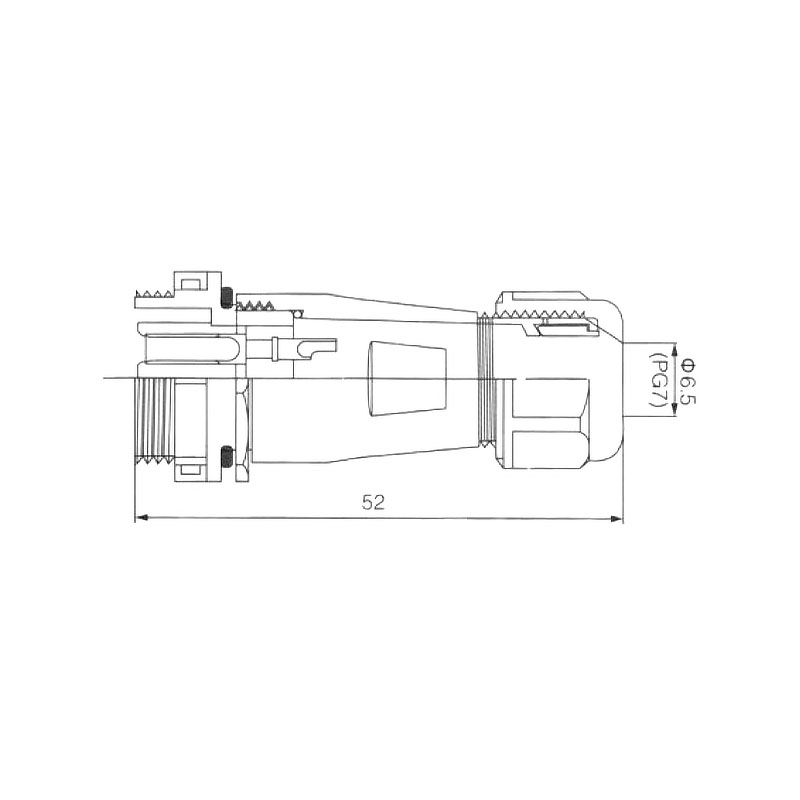

| SD13 TPJ | SD13 TPK | SD13 ZPJ | SD13 ZPK |
 |
 |

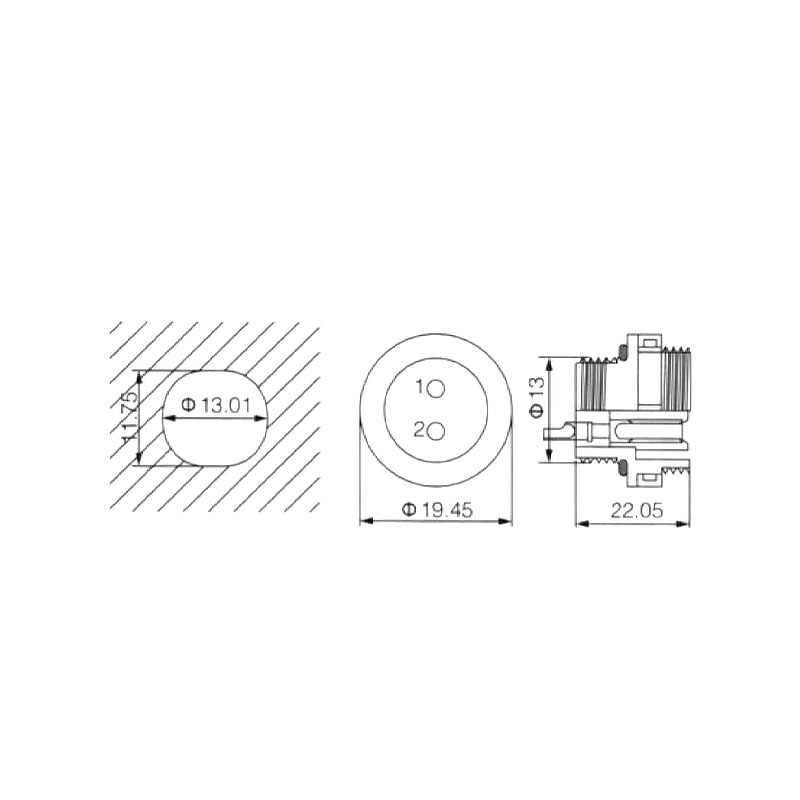

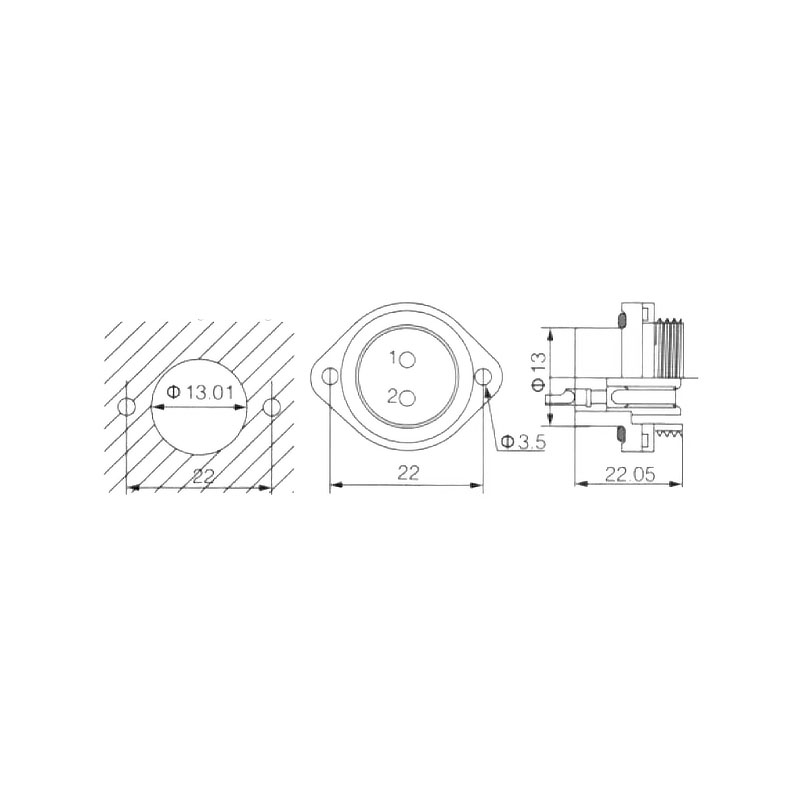

||
| SD13 ZMJ | SD13 ZMK | SD13 ZSJ | SD13 ZSK |
 |
 |
||
| Parameter | 1 | 2 | 3 | 4 | 5 | 6 | 7 |

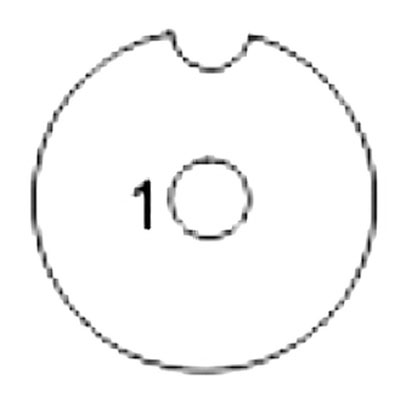

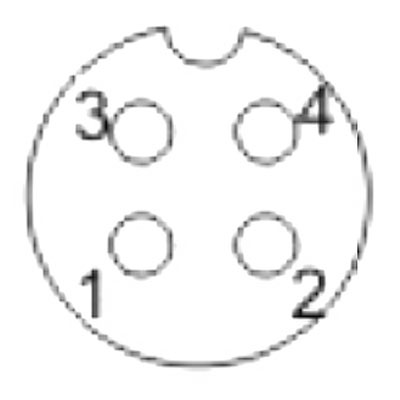

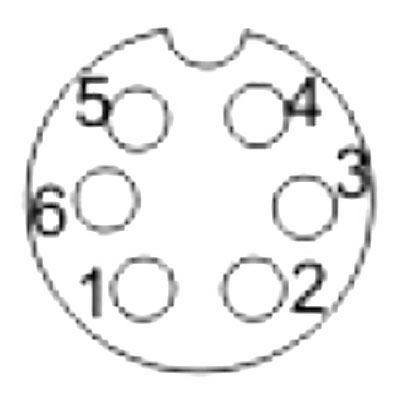

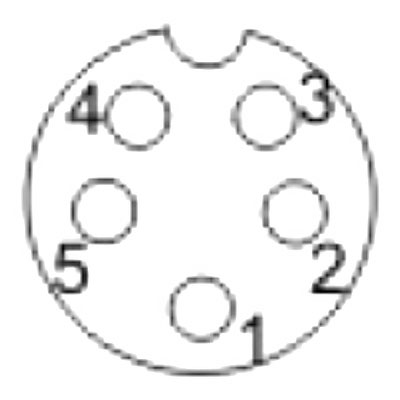

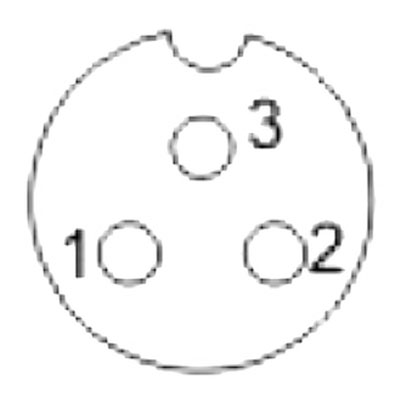

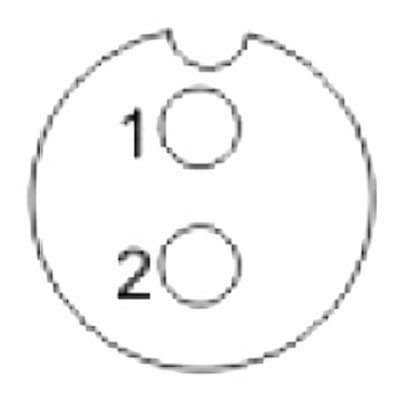

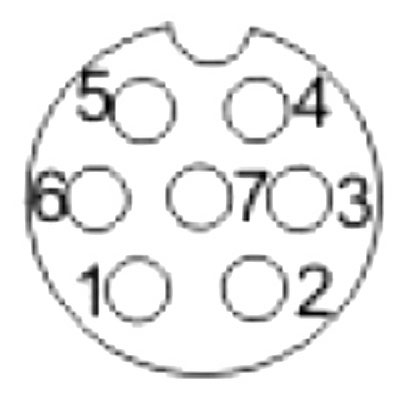

| Front view of pin insulator |  |
 |
 |
 |
 |
 |
 |
| Contact diameter (ΦMM) | Φ2.8×1 | Φ1.8×2 | Φ1×3 | Φ1×4 | Φ1×5 | Φ1×6 | Φ1×7 |
| Rated current A | 25A | 10A | 5A | 5A | 5A | 5A | 5A |
| Operating voltage (AC.V) | 380V | 380V | 250V | 250V | 250V | 250V | 250V |
| Withstand voltage (AC.V) | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V | 1500V |
| Contact resistance MΩ | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Insulation resistance MΩ | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| Cable gauge mm²/AWG | ≤4/12 | ≤1.5/14 | ≤0.75/18 | ≤0.75/18 | ≤0.75/18 | ≤0.75/18 | ≤0.75/18 |
