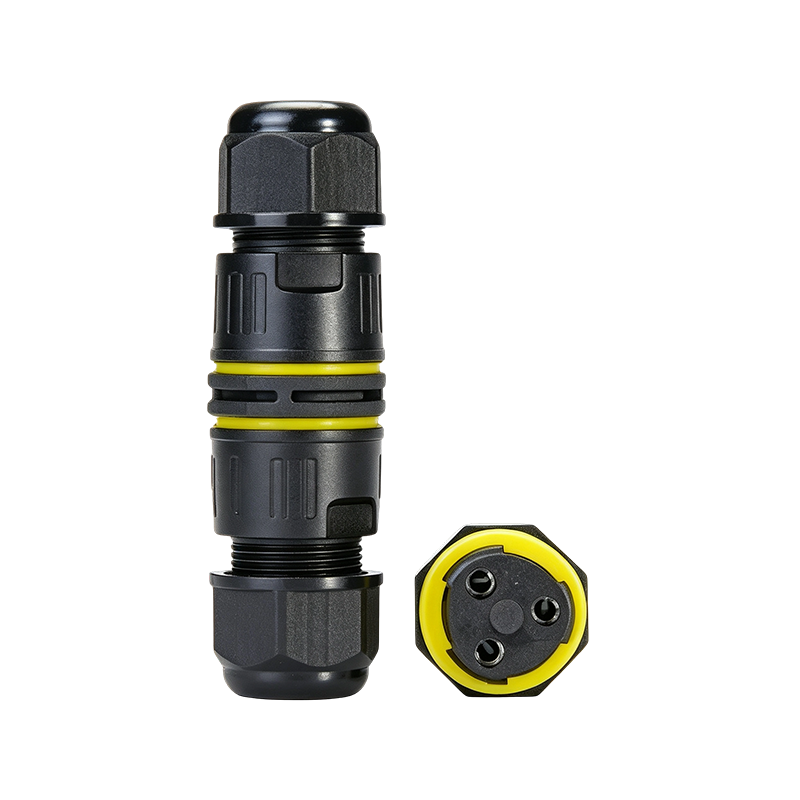

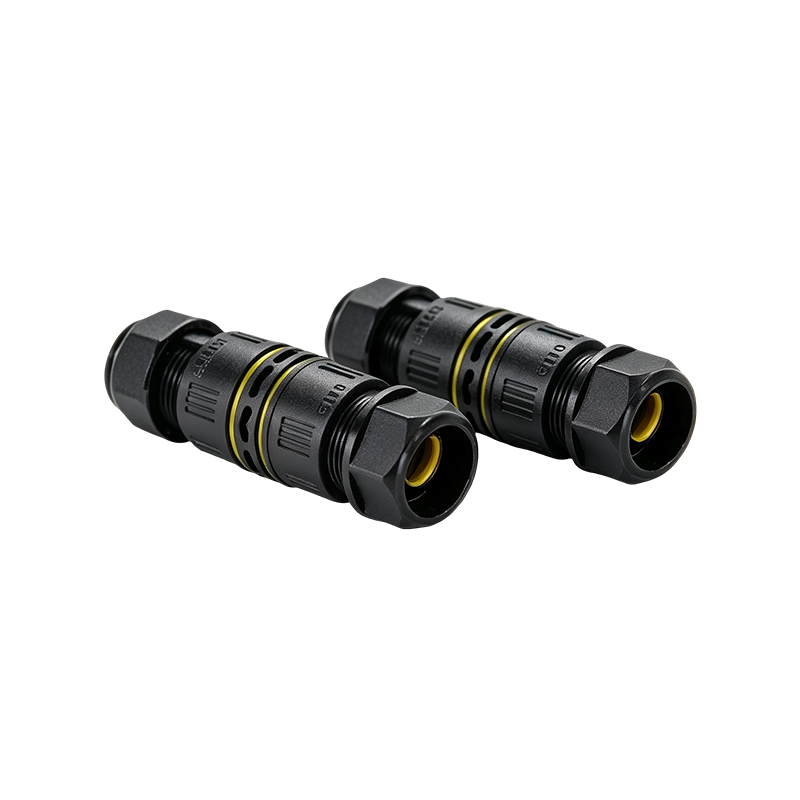

Brass Mini Waterproof Connector MH-ZXM16

The Brass Mini Waterproof Connector MH-ZXM16 is a compact waterproof electrical connector designed for small-diameter cable connections in outdoor and industrial applications. Featuring a brass conductive structure, insulated housing, and waterproof sealing design, it provides stable electrical performance while saving installation space.
Its mini-size design makes it suitable for equipment where compact wiring and reliable environmental protection are required.

VIEW MORE Information VIEW MORE Specifications VIEW MORE Contact Us

Core Functions
Compact Cable Connection
The mini structure is designed for space-limited applications while maintaining reliable cable connection performance.
Stable Electrical Conductivity
The brass conductive components provide good electrical conductivity and corrosion resistance, supporting stable current transmission.
Waterproof Protection
The sealed structure helps prevent water, dust, and moisture from entering the connection area, improving connection reliability.
Easy Installation
The compact design allows convenient installation in small electrical devices and control systems.

Specific Applications
The MH-ZXM16 Brass Mini Waterproof Connector is widely used in LED lighting, sensors, smart devices, automation equipment, outdoor electrical products, and compact control systems.

Item Specification
Protection Rating IP68
Temperature Resistance -40°C to +105°C
Storage Temperature Ambient
Body Material PA66 Nylon (Flame-retardant)
O-ring Material Silicone (Eco-friendly)
Applicable Cable Range Φ3–6.5 mm, Φ5–8 mm, Φ7–10 mm
Connection Method Screw Terminal
Conductor Material Nickel-plated 59-1 Brass
Applicable Wire Cross-section 0.2–2.5 mm²
Test Voltage 250V
Rated Voltage/Current 400V/25A
Flame Retardancy Rating UL-94V0
